Lab 1: The Artemis Board and Bluetooth

This lab focused on getting acquainted with the RedBoard Artemis Nano, including the Arduino IDE and Bluetooth communication.

Lab 1A

Serial

Once basic programmability was established, the “Serial” example showed that data could be communicated to and from the board using a serial monitor (with the input data echoed as output).

Temperature & Microphone

The “Analog Read” example showed that data could be received from sensors (in this case, the temperature sensor). In addition, the “Microphone” example showed that we could access and manipulate microphone data to collect frequency information.

C Detector (ECE 5160)

As an added example for ECE 5160, we were responsible for combining the previous examples to detect when a “C” was played, indicated by blinking the LED.

For detecting a “C”, I modified the microphone example to output a boolean for whether the detected loudest frequency was our expected frequency (I used 523Hz, corresponding to ~C5), within a given margin to account for slight variations and the relatively broad FFT bins of ~11.44Hz, as used by the PDM example.

#define FREQ_MARGIN 20
#define FREQ 523

bool is_c_note(void) {
  uint32_t ui32LoudestFrequency;

  // ... Microphone data and FFT parsing code, adapted from
  //     the "Microphone" example ...

  return (ui32LoudestFrequency - FREQ_MARGIN) < FREQ &
         (ui32LoudestFrequency + FREQ_MARGIN) > FREQ;
}

This was used to modify the “Blink” example, such that the loop function checked whether a C was currently being played, and only blinked the LED if is_c_note returned true.

Lab 1B

Prelab

For this section of the lab, we explored communicating with the Artemis board over Bluetooth (specifically, “Low Energy” Bluetooth, or BLE), making use of the ArduinoBLE library, and interfacing from our own machine with the bleak Python module. This required setting up a custom Python virtual environment, as specified in the lab handout (including installing the necessary modules)

python3 -m venv FastRobots_ble
source FastRobots_ble/bin/activate # Run again to re-source environment
pip install numpy pyyaml colorama nest_asyncio bleak jupyterlab

To prepare for communication over Bluetooth, we first needed to be able to identify our particular Bluetooth device (i.e. the Artemis board) using it’s MAC Address, a unique 12-digit hexadecimal number for each device on a network. The provided ble_arduino.ino displays this using the serial monitor when the device first starts up, which can be replaced in connections.yaml to connect to the correct device:

../_images/mac_addr.png

In addition, we need to establish the UUID that our device’s Bluetooth service connects with; we can obtain a sample UUID (v4) from Python with:

from uuid import uuid4
uuid4()

After modifying connections.yaml (Python-side) and ble_arduino.ino (Arduino-side), we can connect over Bluetooth (specifically, Low-Energy Bluetooth, or BLE)! Our libraries contain helper functions to facilitate this communication:

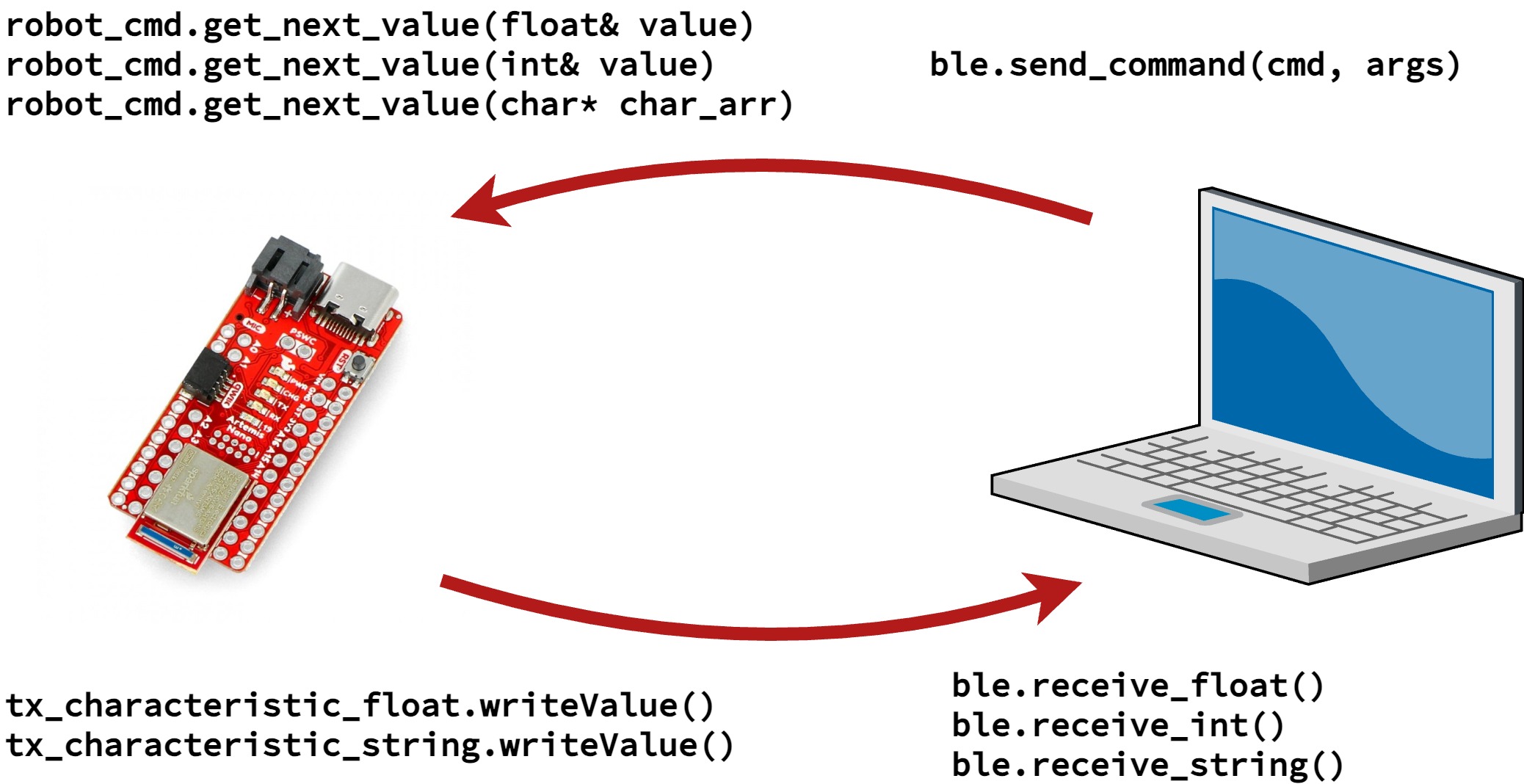

../_images/transfer.jpg

Lab Tasks

1. Echo

The ECHO command receives a string from Python, and returns a modified string. For ease of debugging and visibility, the modified string is also printed serially.

Case Statement for ECHO
case ECHO:

    char char_arr[MAX_MSG_SIZE];

    // Extract the next value from the command string as a character array
    success = robot_cmd.get_next_value(char_arr);
    if (!success) return;

    tx_estring_value.clear();
    tx_estring_value.append("Robot says -> ");
    tx_estring_value.append(char_arr);
    tx_estring_value.append(" :)");
    tx_characteristic_string.writeValue(tx_estring_value.c_str());

    Serial.printf("Sent back: '%s'\n", tx_estring_value.c_str());

    break;

2. Send Three Floats

The SEND_THREE_FLOATS command is similar to ECHO, but changes the received data; instead of extracting one string argument, we extract three float arguments.

Case Statement for SEND_THREE_FLOATS
case SEND_THREE_FLOATS:
   float float_a, float_b, float_c;

   // Extract the next value from the command string as an integer
   success = robot_cmd.get_next_value(float_a);
   if (!success) return;

   // Extract the next value from the command string as an integer
   success = robot_cmd.get_next_value(float_b);
   if (!success) return;

   // Extract the next value from the command string as an integer
   success = robot_cmd.get_next_value(float_c);
   if (!success) return;

   Serial.print("Three Floats: ");
   Serial.print(float_a);
   Serial.print(", ");
   Serial.print(float_b);
   Serial.print(", ");
   Serial.println(float_c);

   break;

3. Get Time Millis

GET_TIME_MILLIS is also similar to ECHO; however, we respond with a modified string of the current time in the format T:123456 (obtained from millis())

Case Statement for GET_TIME_MILLIS
case GET_TIME_MILLIS:
   tx_estring_value.clear();
   tx_estring_value.append("T:");
   tx_estring_value.append((int)millis());
   tx_characteristic_string.writeValue(tx_estring_value.c_str());
   break;

4. Notification Handler

Parsing data in Python was done using a notification handler to get the time from the response string:

Notification handler to record the time response
times = []

def parse_time(response: str) -> int:
  time = int(response[2:])
  return time

def time_handler(_uid, response):
  print(f"[time_handler] Received {response}")
  times.append(parse_time(response))

5. Time Notification Loop

We can attach this notification handler to the BLE Controller, and run GET_TIME_MILLIS many times to measure inter-response latency:

ENTRIES_TO_RECORD = 100 # Record one more than this to get the time differences

ble.start_notify(ble.uuid['RX_STRING'], time_handler)

for _ in range(ENTRIES_TO_RECORD + 1):
  ble.send_command(CMD.GET_TIME_MILLIS, "")

Data Rate: \(\frac{100 \text{ entries} \cdot \frac{4B}{\text{entry}}}{3.034 s} = 131.84\frac{B}{s}\)

6. Send Times in Batch

As a variation, a loop was implemented on the Artemis instead of the Python code. Here, NOTE_TIME_MILLIS notes down times in a loop, and then SEND_TIME_DATA sends all of the values back:

Case Statements for NOTE_TIME_MILLIS and SEND_TIME_DATA
 case NOTE_TIME_MILLIS:
   for (int i = 0; i <= ENTRIES_TO_RECORD; i++) {
     if (entry_idx < NUM_ENTRIES) {
       time_entries[entry_idx] = millis();
       entry_idx += 1;
     }
   }
   break;

 case SEND_TIME_DATA:
   for (int i = 0; i <= ENTRIES_TO_RECORD; i++) {
     tx_estring_value.clear();
     tx_estring_value.append("T:");
     tx_estring_value.append((int)time_entries[i]);
     tx_characteristic_string.writeValue(tx_estring_value.c_str());
   }
   entry_idx = 0;
   break;

Data Rate: \(\frac{300 \text{ entries} \cdot \frac{4B}{\text{entry}}}{0.005 s} = 240000\frac{B}{s}\)

7. Send Temperature in Batch

Another loop implementation records both time and temperature in a loop on the Artemis. NOTE_TEMP_READING notes the temperature with an accompanying timestamp, and GET_TEMP_READINGS sends them all back in a loop.

Case Statements for NOTE_TIME_MILLIS and SEND_TIME_DATA
 case NOTE_TEMP_READING:
   for (int i = 0; i <= ENTRIES_TO_RECORD; i++) {
     if (entry_idx < NUM_ENTRIES) {
       time_entries[entry_idx] = millis();
       temp_entries[entry_idx] = getTempDegF();
       entry_idx += 1;
     }
   }
   break;

 case GET_TEMP_READINGS:
   for (int i = 0; i <= ENTRIES_TO_RECORD; i++) {
     tx_estring_value.clear();
     tx_estring_value.append("T:");
     tx_estring_value.append((int)time_entries[i]);
     tx_estring_value.append("|D:");
     tx_estring_value.append(temp_entries[i]);
     tx_characteristic_string.writeValue(tx_estring_value.c_str());
   }
   entry_idx = 0;
   break;

This also required a new handler in Python to parse the sent data (in the form T:123456|D:72.00)

times = []
temps = []

def parse_time_temp(response: str) -> tuple[int, float]:
  resps = response.split("|")
  time_resp, temp_resp = resps[0], resps[1]
  return int(time_resp[2:]), float(temp_resp[2:])

def time_temp_handler(_uid, response):
  print(f"[time_temp_handler] Received {response}")
  time, temp = parse_time_temp(response.decode("utf-8"))
  times.append(time)
  temps.append(temp)

Data Rate: \(\frac{300 \text{ entries} \cdot \frac{8B}{\text{entry}}}{0.096 s} = 25000\frac{B}{s}\)

8. Discussion

From above, we have two methods to gather and store data; either incrementally with GET_TIME_MILLIS, or in batches with the note and send data commands. Each of these has their advantages and disadvantes:

  • Latency: Using GET_TIME_MILLIS results in significant delay between readings due to BLE communication. In constrast, recording data in batches loops on the Artemis, avoiding BLE latency and resulting in much faster iterations.

  • Feedback: Using GET_TIME_MILLIS results in immediate feedback from sensors, which may be useful for debugging. In comparison, recording data in batches and then sending causes more delay between the initial request and when data is received.

  • Storage: Using GET_TIME_MILLIS results in small, temporary storage requirements to obtain and immediately send the data. However, sending data in batches means that all data must first be stored, posing a significant storage requirement. A rough upper limit is given by the 384kB of RAM; if we store just time (4B per reading), we get a maximum of 98,304 readings. If we store both time and temperature, this is halved to 49,152 readings. If storage becomes an issue for an application, batch recordings may have to be repeated (with the previous data overwritten), or the frequency of sampling artificially slowed to cover a greater time period.

9. Effective Data Rate and Overhead (ECE 5160)

5160 students experimented with response latency with different lengths of responses. This was implemented by having GET_BYTES send a specified number of bytes (implemented as a string of one less than the requested length, to account for the null terminator). 50 responses were sent for each command, to amortize other latency.

Case Statements for GET_BYTES
 case GET_BYTES:
   int num_bytes;
   success = robot_cmd.get_next_value(num_bytes);
   if (!success) return;

   tx_estring_value.set_byte_len(num_bytes, 'A');
   for (int i = 0; i < NUM_TO_SEND; i++) {
     tx_characteristic_string.writeValue(tx_estring_value.c_str());
   }
   break;

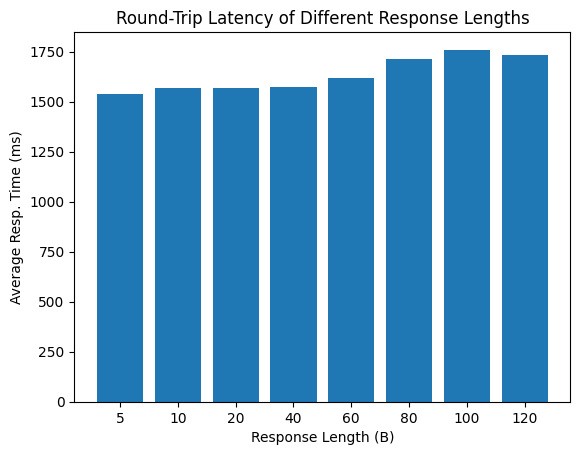

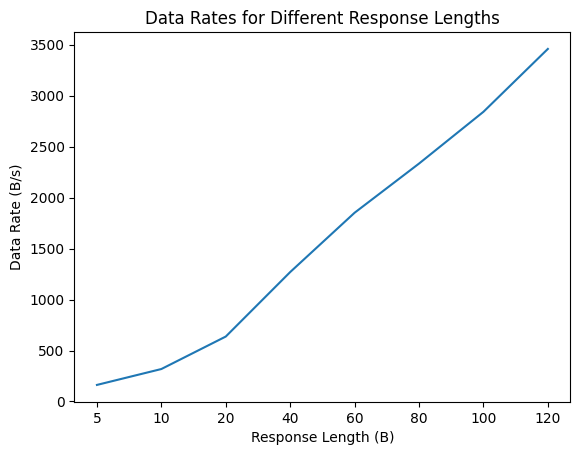

pic1 pic2

We can see that latency overall increased with response length, but didn’t vary significantly (dominated by BLE latency, not the length of the response packet). This naturally led to longer responses achieving an overall greater data rate.

10. Reliability (ECE 5160)

Building on the previous example, GET_IDX_BYTES is similar to GET_BYTES, but each response is a character with the ASCII value offset by the index. This sacrifices some (small) speed in response for the ability to discern the expected index of each response. After receiving these on the Python side, and verifying each response based on the index, no responses were found to be lost, regardless of the data rate.

Discussion

Learning more about how Bluetooth communication can be implemented with the course libraries will quickly become valuable when needing to communicate with the robot in future labs. In addition, examining the implementation differences and tradeoffs with variations in data gathering patterns and response length will help inform future implementations to best use available resources (including communication time).
