Lab 10: Localization (Simulation)

This lab involved using a Bayes Filter in simulation to demonstrate accurate localization, even with noisy measurements. This will allow us to have a concrete start to build off of when localizing with our robot.

Helper Functions

Our goal is to incrementally develop the following algorithm (the Bayes filter for estimating location based on a prediction and update step):

For all \(x_t\):

\[ \begin{align}\begin{aligned}\overline{bel}(x_t) = \sum_{x_{t-1}} p(x_t | u_t, x_{t-1}) bel(x_{t-1})\\bel(x_t) = \eta \cdot p(z_t | x_t) \overline{bel}(x_t)\end{aligned}\end{align} \]

compute_control

For our motion model, we want to be able to compute the control input from a current and previous pose (with poses being expressed as the current \((x,y)\) coordinates of the robot, as well as its angle \(\theta\)), in the form of an initial rotation, translation, and final rotation.

def compute_control(cur_pose, prev_pose):
  """ Given the current and previous odometry poses, this function extracts
  the control information based on the odometry motion model.

  Args:
      cur_pose  ([Pose]): Current Pose
      prev_pose ([Pose]): Previous Pose

  Returns:
      [delta_rot_1]: Rotation 1  (degrees)
      [delta_trans]: Translation (meters)
      [delta_rot_2]: Rotation 2  (degrees)
  """
  # Unpack inputs
  cur_x, cur_y, cur_t    = cur_pose
  prev_x, prev_y, prev_t = prev_pose

  # Compute control information
  delta_y = cur_y - prev_y
  delta_x = cur_x - prev_x

  delta_rot_1 = degrees(atan2(delta_y, delta_x)) - prev_t
  delta_trans = dist((cur_x, cur_y), (prev_x, prev_y))
  delta_rot_2 = cur_t - (prev_t + delta_rot_1)

  # Normalize angles
  delta_rot_1 = loc.mapper.normalize_angle(delta_rot_1)
  delta_rot_2 = loc.mapper.normalize_angle(delta_rot_2)

  return delta_rot_1, delta_trans, delta_rot_2

odom_motion_model

If we know our current and previous pose, as well as the control inputs we took between them, we can use compute_control to get the actual control inputs needed and determine the probability of the given current state. odom_motion model does this, computing

\[p(x_t | u_t, x_{t-1})\]

def odom_motion_model(cur_pose, prev_pose, u):
  """ Odometry Motion Model

  Args:
      cur_pose  ([Pose]): Current Pose
      prev_pose ([Pose]): Previous Pose
      (rot1, trans, rot2) (float, float, float): A tuple with control data in the format
                                                 format (rot1, trans, rot2) with units (degrees, meters, degrees)


  Returns:
      prob [float]: Probability p(x'|x, u)
  """
  actual_u = compute_control(cur_pose, prev_pose)

  prob_rot_1 = loc.gaussian(actual_u[0] - u[0], 0, loc.odom_rot_sigma)
  prob_trans = loc.gaussian(actual_u[1] - u[1], 0, loc.odom_trans_sigma)
  prob_rot_2 = loc.gaussian(actual_u[2] - u[2], 0, loc.odom_rot_sigma)
  prob  = prob_rot_1 * prob_trans * prob_rot_2

  return prob

prediction_step

Finally, we can combine these functions in prediction_step, which implements the overall prediction step by predicting all beliefs in loc.bel_bar:

For all \(x_t\):

\[\overline{bel}(x_t) = \sum_{x_{t-1}} p(x_t | u_t, x_{t-1}) bel(x_{t-1})\]

def prediction_step(cur_odom, prev_odom):
  """ Prediction step of the Bayes Filter.
  Update the probabilities in loc.bel_bar based on loc.bel from the previous time step and the odometry motion model.

  Args:
      cur_odom  ([Pose]): Current Pose
      prev_odom ([Pose]): Previous Pose
  """
  u = compute_control(cur_odom, prev_odom)
  for ( x_idx, y_idx, a_idx ) in np.ndindex( loc.bel_bar.shape ):
      x_t = loc.mapper.from_map( x_idx, y_idx, a_idx )
      new_bel_bar = 0

      for ( x_idx_t_1, y_idx_t_1, a_idx_t_1 ), bel in np.ndenumerate( loc.bel ):
          if bel > 0.001:
              x_t_1 = loc.mapper.from_map( x_idx_t_1, y_idx_t_1, a_idx_t_1 )
              new_bel_bar += (
                  odom_motion_model( x_t, x_t_1, u ) *
                  bel
              )
      loc.bel_bar[x_idx][y_idx][a_idx] = new_bel_bar

Optimization

Note that we only calculate the probability if bel > 0.001; this helps to avoid the (relatively) lengthy probability calculation for terms that won’t meaningfully contribute to the overall sum, increasing the speed of our calculation

sensor_model

Similar to our motion model, we also need our sensor model to provide \(p(z_t | x_t)\). This is done in sensor_model, where we compare a ground-truth observation to our current views (given with loc.obs_range_data) to compute the probability of our views for a given location. Note that we can do this with a single call to loc.gaussian for all elements, as the numpy arrays can be operated on collectively

Array Size

Since our true views from mapper.get_views are a 1-D array of length 18, but loc.obs_range_data is a 2D \((18, 1)\) array, we have to first flatten the latter to compare them correctly

def sensor_model(obs):
  """ This is the equivalent of p(z|x).


  Args:
      obs ([ndarray]): A 1D array consisting of the true observations for a specific robot pose in the map

  Returns:
      [ndarray]: Returns a 1D array of size 18 (=loc.OBS_PER_CELL) with the likelihoods of each individual sensor measurement
  """

  prob_array = loc.gaussian(obs, loc.obs_range_data.flatten(), loc.sensor_sigma)
  return prob_array

update_step

Finally, we can use our sensor model to implement our update step to update our current belief loc.bel:

For all \(x_t\):

\[bel(x_t) = \eta \cdot p(z_t | x_t) \overline{bel}(x_t)\]

Optimization

To avoid calling flatten each time with sensor_model, I instead chose to “inline” the function to only call flatten once, speeding up runtime

def update_step():
  """ Update step of the Bayes Filter.
  Update the probabilities in loc.bel based on loc.bel_bar and the sensor model.
  """
  range_data = loc.obs_range_data.flatten()
  for ( x_idx, y_idx, a_idx ), bel_bar in np.ndenumerate( loc.bel_bar ):
      true_measurements = loc.mapper.get_views( x_idx, y_idx, a_idx )

      # Equivalent to `sensor_model( true_measurements )`
      prob_array = loc.gaussian(true_measurements, range_data, loc.sensor_sigma)
      loc.bel[x_idx][y_idx][a_idx] = np.prod(prob_array) * bel_bar

  # Normalize -> equivalent to multiplying by eta
  loc.bel = loc.bel / loc.bel.sum()

This can now be used in our top-level loop (given) to implement the Bayes Filter, where we iteratively take a step along our trajectory (based on our belief), predict where we are, then gather sensor measurements and update our belief with them:

for t in range(0, traj.total_time_steps):

  # Take a step
  prev_odom, current_odom, prev_gt, current_gt = traj.execute_time_step(t)

  # Prediction Step
  prediction_step(current_odom, prev_odom)
  loc.print_prediction_stats(plot_data=True)

  # Get Observation Data by executing a 360 degree rotation motion
  loc.get_observation_data()

  # Update Step
  update_step()
  loc.print_update_stats(plot_data=True)

Running the Bayes Filter

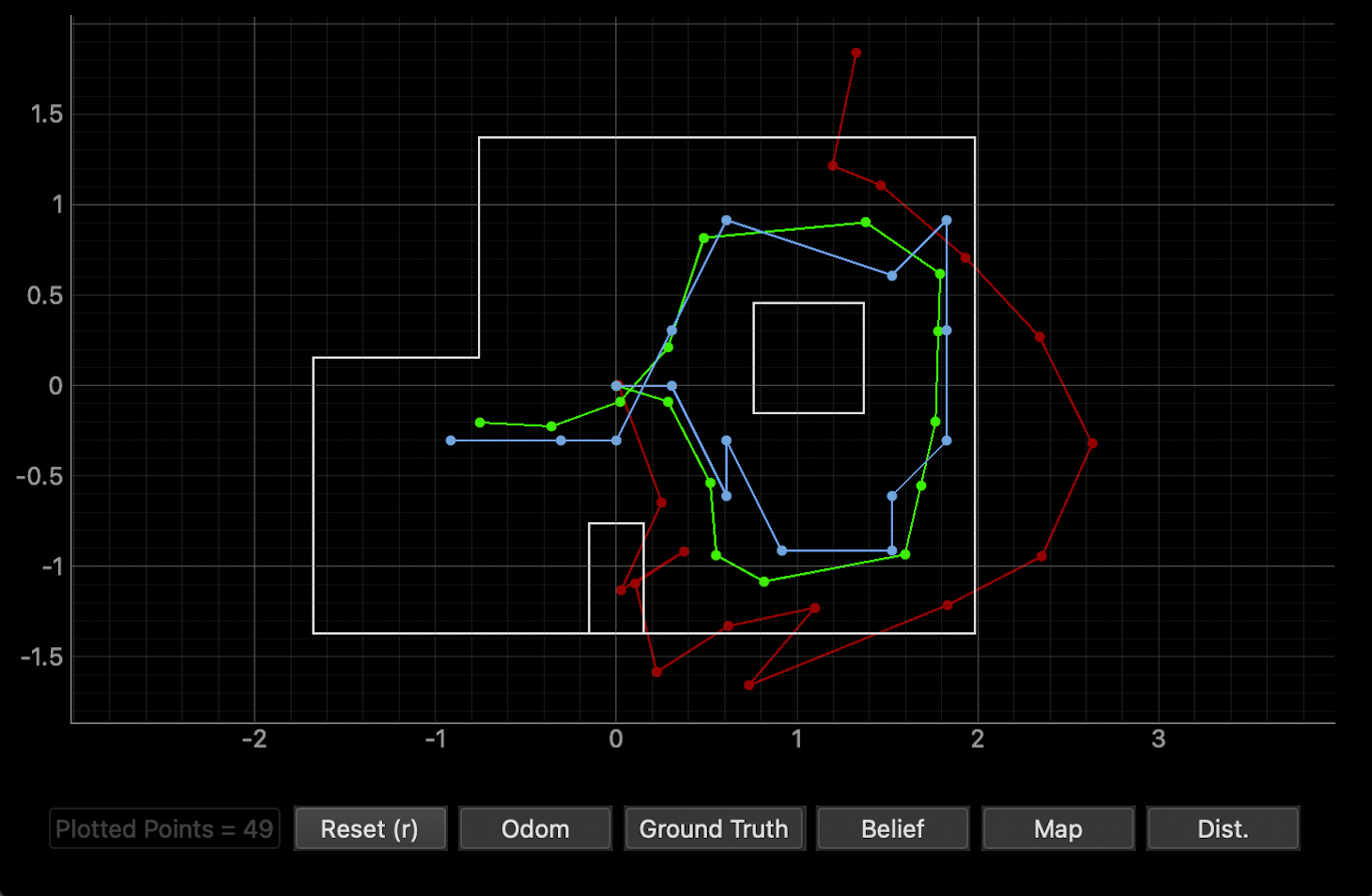

With our filter implemented, we can run it on our simulation to see how well we can predict the ground truth, even with noise (I performed two trials, shown on the left and right). Here, the ground truth is plotted in green, our raw odometry model in red, and our Bayes filter in blue. You can click on pictures if they aren’t big enough

We can immediately see that our Bayes filter gives a much better estimate of our location, further reinforced with the outputs of our simulator (adjusted to have the ground truth angle be normalized, and knowing that a probability of 1.0 is an artifact of rounding):

Run 1 Data

Raw Output

Step	Ground Truth State	Belief State	Belief Probability	Error
0	\((0.287, -0.087, 320.561)\)	\((0.305, 0.000, -50.000)\)	\(0.9999999\)	\((-0.018, -0.087, 10.561)\)
1	\((0.515, -0.523, 657.643)\)	\((0.305, -0.610, -70.000)\)	\(1.0\)	\((0.210, 0.087, 7.643)\)
2	\((0.515, -0.523, 995.105)\)	\((0.305, -0.610, -90.000)\)	\(1.0\)	\((0.210, 0.087, 5.105)\)
3	\((0.551, -0.921, 1355.105)\)	\((0.610, -0.914, -90.000)\)	\(1.0\)	\((-0.059, -0.007, 5.105)\)
4	\((0.814, -1.053, 1802.003)\)	\((0.914, -0.914, 10.000)\)	\(1.0\)	\((-0.100, -0.139, -7.997)\)
5	\((1.592, -0.867, 2210.970)\)	\((1.524, -0.914, 50.000)\)	\(0.9999999\)	\((0.068, 0.047, 0.970)\)
6	\((1.660, -0.480, 2600.101)\)	\((1.524, -0.610, 70.000)\)	\(1.0\)	\((0.136, 0.130, 10.101)\)
7	\((1.722, -0.125, 2965.832)\)	\((1.829, -0.305, 90.000)\)	\(1.0\)	\((-0.107, 0.180, -4.168)\)
8	\((1.709, 0.366, 3348.373)\)	\((1.829, 0.000, 90.000)\)	\(0.8496144\)	\((-0.119, 0.366, 18.373)\)
9	\((1.703, 0.685, 3747.520)\)	\((1.524, 0.610, 150.000)\)	\(1.0\)	\((0.179, 0.076, -2.480)\)
10	\((1.281, 0.954, 4118.791)\)	\((1.524, 0.914, 150.000)\)	\(1.0\)	\((-0.243, 0.039, 8.791)\)
11	\((0.402, 0.847, 4574.553)\)	\((0.610, 0.914, -110.000)\)	\(1.0\)	\((-0.207, -0.068, 4.553)\)
12	\((0.229, 0.220, 4979.635)\)	\((0.305, 0.305, -70.000)\)	\(1.0\)	\((-0.075, -0.085, 9.635)\)
13	\((-0.013, -0.090, 5272.037)\)	\((0.000, -0.305, -130.000)\)	\(1.0\)	\((-0.013, 0.215, 2.037)\)
14	\((-0.372, -0.249, 5609.496)\)	\((-0.305, -0.305, -150.000)\)	\(1.0\)	\((-0.067, 0.056, -0.504)\)
15	\((-0.766, -0.255, 5946.383)\)	\((-0.610, -0.305, -170.000)\)	\(0.9039539\)	\((-0.156, 0.050, -3.617)\)

Run 2 Data

Raw Output

Step	Ground Truth State	Belief State	Belief Probability	Error
0	\((0.287, -0.089, 320.275)\)	\((0.305, 0.000, -50.000)\)	\(0.9999999\)	\((-0.018, -0.089, 10.275)\)
1	\((0.520, -0.540, 657.357)\)	\((0.610, -0.610, -50.000)\)	\(1.0\)	\((-0.089, 0.069, -12.643)\)
2	\((0.520, -0.540, 994.819)\)	\((0.610, -0.305, -70.000)\)	\(1.0\)	\((-0.089, -0.235, -15.181)\)
3	\((0.554, -0.939, 1354.819)\)	\((0.914, -0.914, -70.000)\)	\(0.9918263\)	\((-0.361, -0.024, -15.181)\)
4	\((0.817, -1.083, 1799.329)\)	\((0.914, -0.914, 10.000)\)	\(1.0\)	\((-0.098, -0.169, -10.671)\)
5	\((1.596, -0.935, 2208.296)\)	\((1.524, -0.914, 50.000)\)	\(0.9999999\)	\((0.072, -0.021, -1.704)\)
6	\((1.685, -0.552, 2596.950)\)	\((1.524, -0.610, 70.000)\)	\(1.0\)	\((0.161, 0.058, 6.950)\)
7	\((1.766, -0.201, 2962.585)\)	\((1.829, -0.305, 90.000)\)	\(1.0\)	\((-0.063, 0.104, -7.415)\)
8	\((1.781, 0.299, 3345.222)\)	\((1.829, 0.305, 110.000)\)	\(0.9988935\)	\((-0.048, -0.006, -4.778)\)
9	\((1.792, 0.618, 3745.324)\)	\((1.829, 0.914, 150.000)\)	\(1.0\)	\((-0.037, -0.297, -4.676)\)
10	\((1.380, 0.902, 4116.786)\)	\((1.524, 0.610, 150.000)\)	\(1.0\)	\((-0.144, 0.292, 6.786)\)
11	\((0.484, 0.817, 4571.879)\)	\((0.610, 0.914, -110.000)\)	\(0.9999995\)	\((-0.125, -0.097, 1.879)\)
12	\((0.286, 0.209, 4976.961)\)	\((0.305, 0.305, -70.000)\)	\(1.0\)	\((-0.019, -0.095, 6.961)\)
13	\((0.019, -0.089, 5268.218)\)	\((0.000, -0.305, -130.000)\)	\(1.0\)	\((0.019, 0.216, -1.782)\)
14	\((-0.357, -0.226, 5605.582)\)	\((-0.305, -0.305, -150.000)\)	\(1.0\)	\((-0.052, 0.079, -4.418)\)
15	\((-0.756, -0.205, 5942.659)\)	\((-0.914, -0.305, -170.000)\)	\(0.9981926\)	\((0.158, 0.100, -7.341)\)

An interesting observation is that low and high errors tend to occur at the same steps; while some is due to grid quantization, lower error tends to occur when the robot is closer to the walls (such as the corridor), as there are more distinguishing features to localize against
