Lab 3: Time-of-Flight Sensing

Once we go our IMU working, we can begin to include Time-of-Flight (ToF) data to sense other objects around us.

Prelab

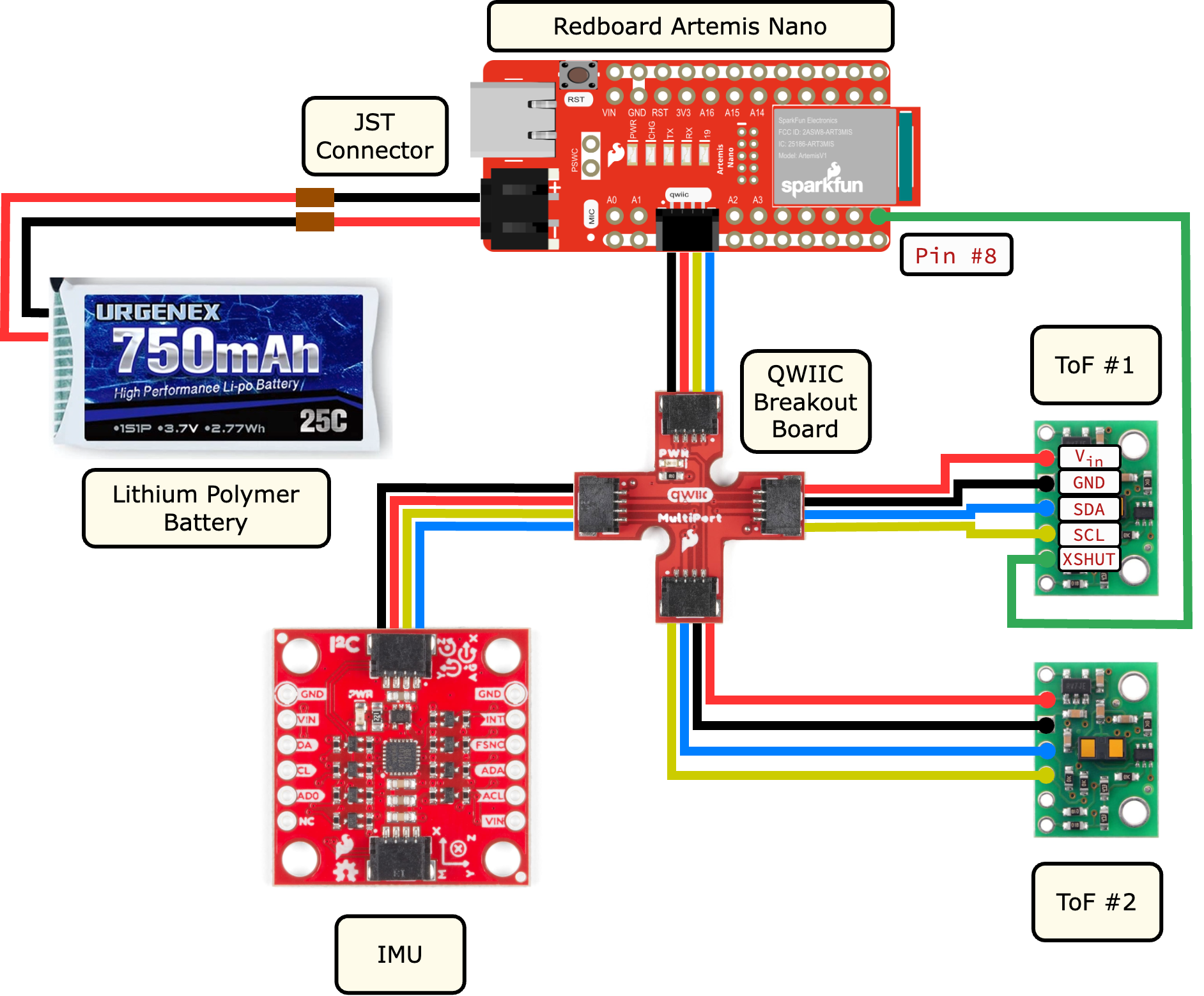

This week’s prelab included determining how our two ToF sensors (as well as the IMU) would be wired (noting that blue is SDA and yellow is SCL)

../_images/wiring.png

Battery Wire Colors

The wiring colors unconventionally change from the LiPo battery to the Artemis; this was a result of our JST connector physically connecting black to the + terminal (and red to -), so the color convention was swapped to have correct voltage polarity.

All of our sensor boards communicate over I2C; we can use the QWIIC breakout board to connect all of them to the Artemis’ I2C port, and strip/solder the QWIIC cables to our ToF sensors as appropriate

Two Time-of-Flight Sensors

To detect obstacles in multiple directions, our vehicle will use two ToF sensors. While their position may change based on future lab results, I currently plan to have them mounted on the front and side of the car. In a maze scenario, this will allow us to see obstacles directly in front of us as well as to one side, at the expense of behind us (likely not needed, as it’s where we came from) and to the other side (can be achieved by rotation).

../_images/tof-placement.png

Both ToF sensors have a default I2C address of 0x52. If we attempt to communicate, both will see thie address as theirs and attempt to respond appropriately, causing a bus collision. However, their address is programmable; we can therefore use the XSHUT pin to turn off one and change the address of the other to avoid collisions.

Finally, the ToF sensors are more position-dependent than the IMU; I accordingly chose to use the long QWIIC cables for these to leave them the most freedom of position on the robot.

Lab Tasks

One Time-of-Flight Sensor

The first step was to connect one ToF sensor, to verify it could work alone.

../_images/one-tof.png

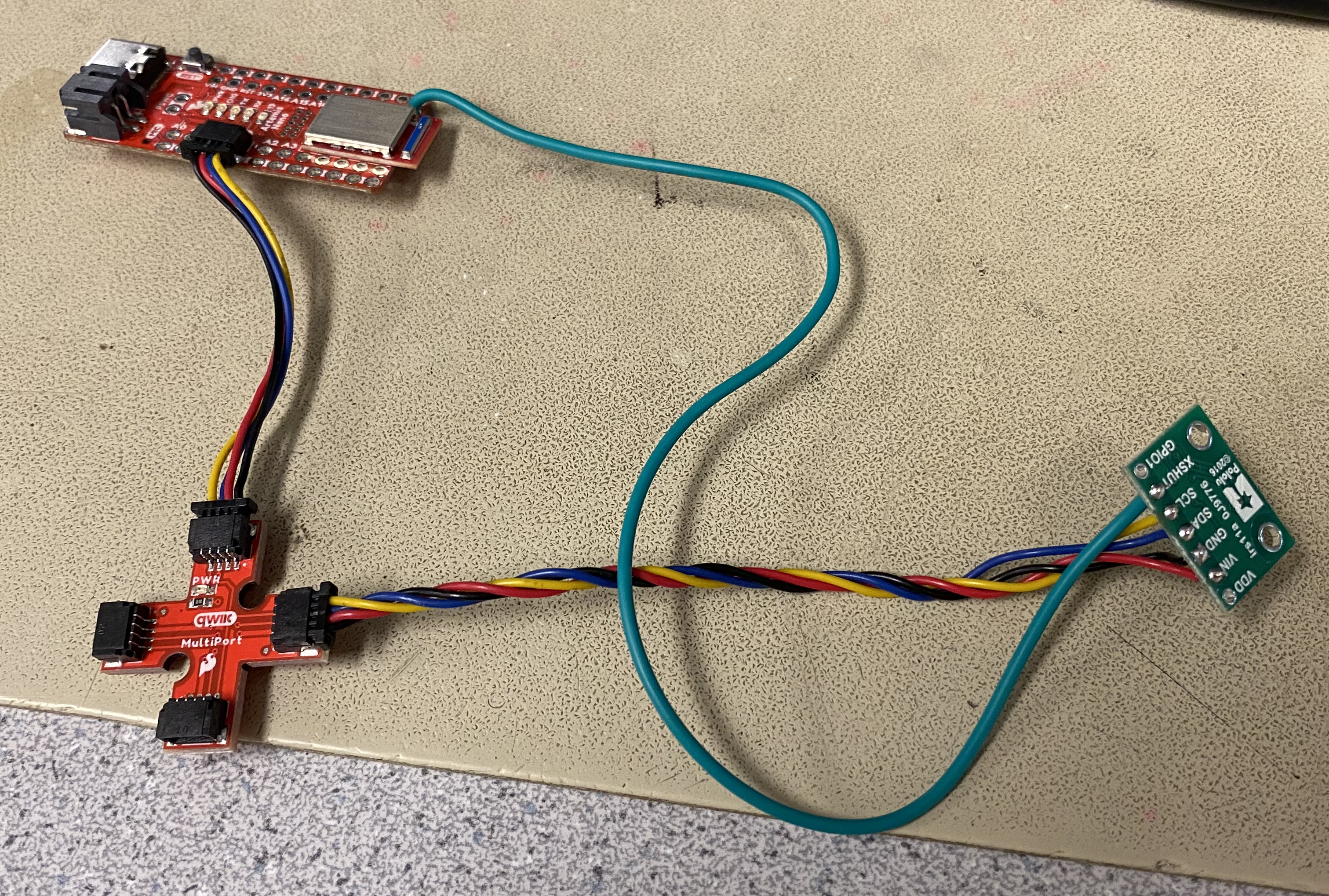

Hardware setup with one ToF sensor (XSHUT not necessary)

We can use the Arduino example for scanning the I2C bus to verify the address.

../_images/i2c-scan.png

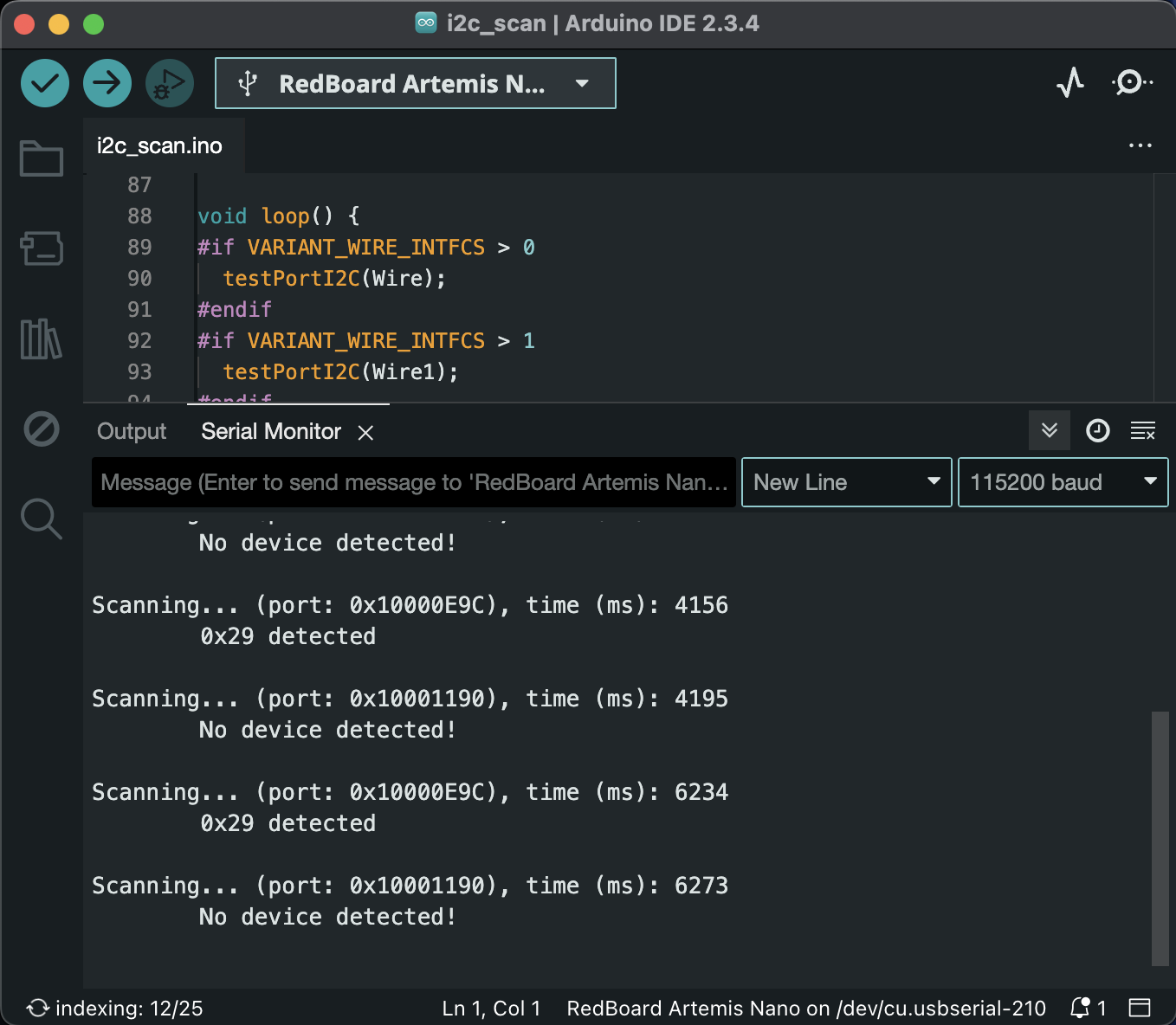

I2C scanning example

The address found is 0x29; while this initially seems incorrect, we can notice that this is 0x52 >> 1, omitting the last bit. The last I2C address bit is used to indicate direction; 0 for a write, 1 for a read. Because of this, the controlling device only keeps track of the first 7 bits.

../_images/datasheet-address.png

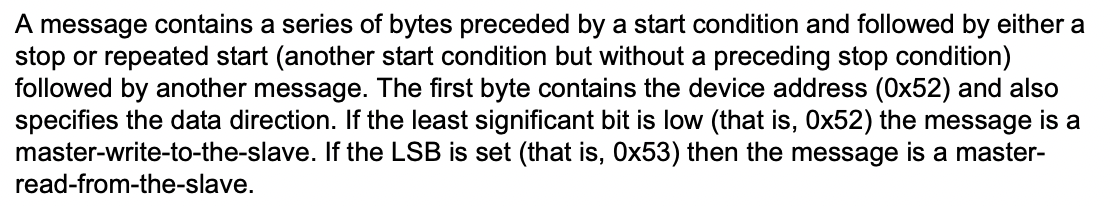

An excerpt from the ToF datasheet, verifying our address expectation

Testing Range

For this lab, I chose the “Short” distance mode, as it is the best with ambient light, and the 1.3 meters of range seemed adequate for a robot of our size.

../_images/distance-modes.png

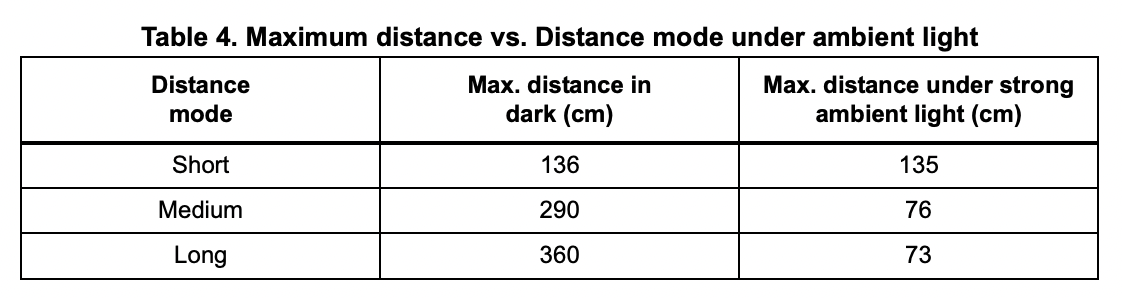

The available distance modes (Source: Datasheet)

Initialization of the ToF Sensor
#include "SparkFun_VL53L1X.h"

void setup() {

// ...
  Wire.begin();

  if (distanceSensor.begin() != 0)  // Begin returns 0 on a good init
  {
    Serial.println("Sensor failed to begin. Please check wiring. Freezing...");
    while (1);
  }
  distanceSensor.setDistanceModeShort();
  Serial.println("Sensor online!");
}

For this experiment, I used a tape measure to get the true position, and used the IMU over Bluetooth to record and plot measured position, as well as ranging time.

../_images/testing-setup.jpg

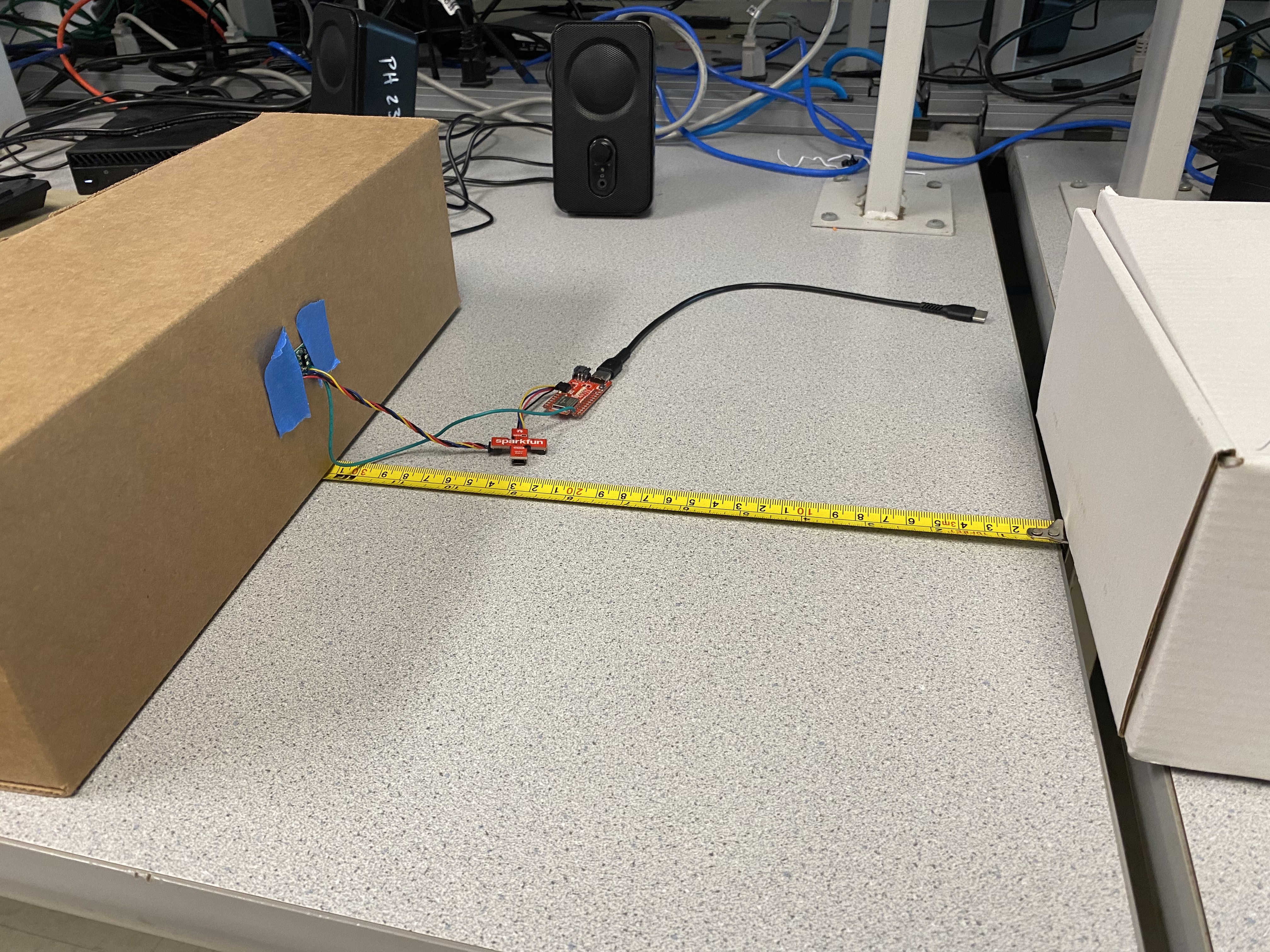

The testing setup for the Time-of-Flight sensor

ToF data loop
for( int i = 0; i < ENTRIES_TO_RECORD; i++ ){
  unsigned long start_time = micros();
  distanceSensor.startRanging();
  while (!distanceSensor.checkForDataReady()) {
    delay(1);
  }
  ranging_time_entries[i] = micros() - start_time;
  distance_entries[i] = distanceSensor.getDistance();  // Get the result of the measurement from the sensor
  distanceSensor.clearInterrupt();
  distanceSensor.stopRanging();
}

Sweeping a range of distances (incrementing by 10cm) resulted in the following data:

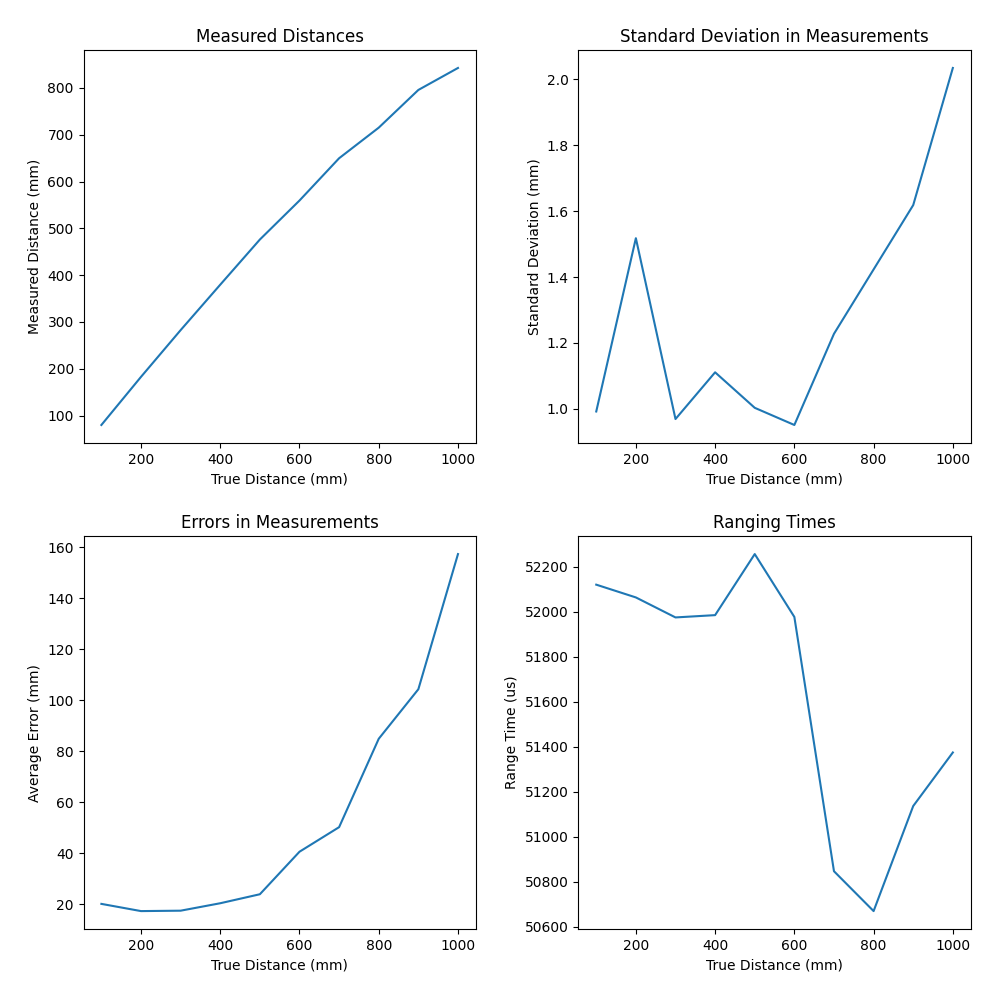

../_images/sweep.png

We can see that the error significantly increased with the distance being measured. Additionally, even close by, the sensor was consistently off by ~20mm; this could be fixed by using the calibrateOffset or setOffset functions of the sensor library. Finally, we can see that ranging time varied a lot; while some is due to noise, some may also be due to the sensor recognizing when it won’t make a good measurement anyway, and choosing not to spend too much time on it.

Repeating this experiment in the dark not only confirmed the measurements, but gave confidence that our sensor was resilient to ambient light.

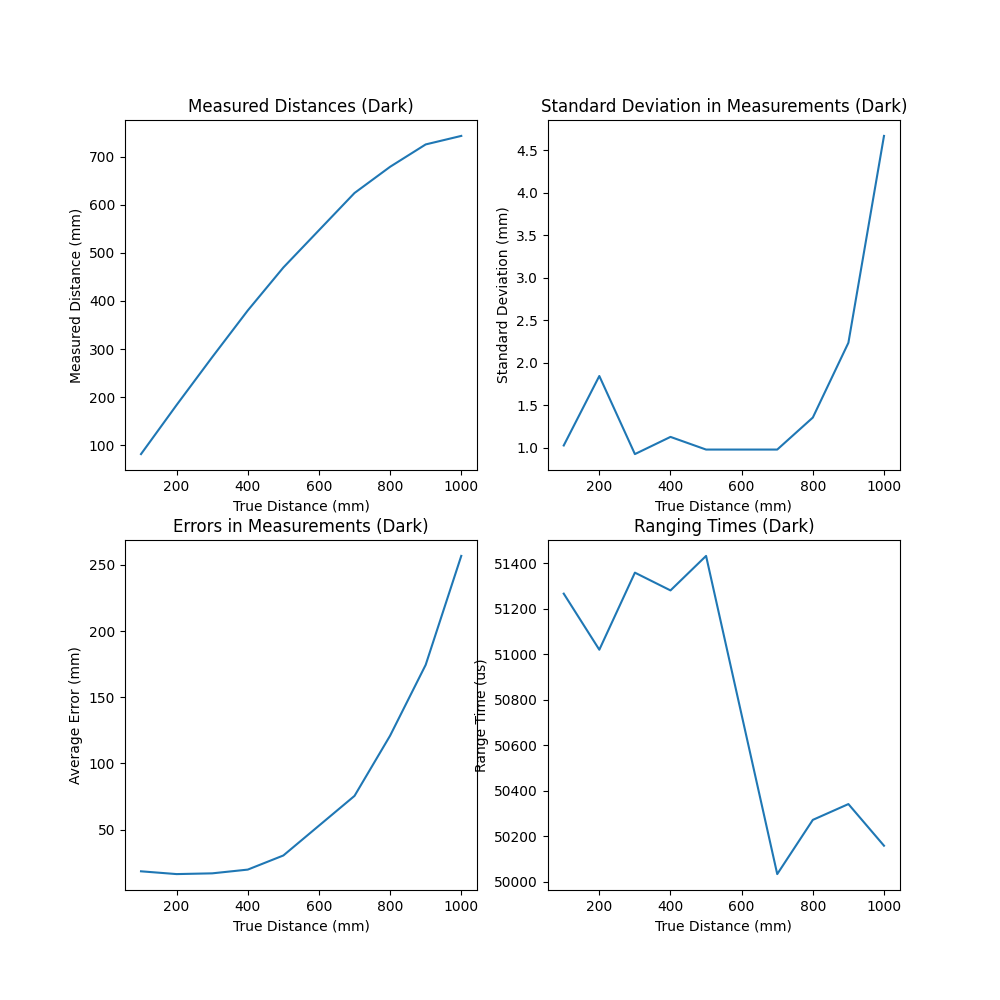

../_images/sweep_dark.png

Finally, I also wanted to see what the effect of manually varying the timing budget with setTimingBudgetInMs would do to the results. The distance data is interesting (even decreasing at one point), but unsuprising; I ended up using a different sensor for this, and we already knew they were unreliable at that distance. More interesting is the standard deviation; higher range times yielded more precise results.

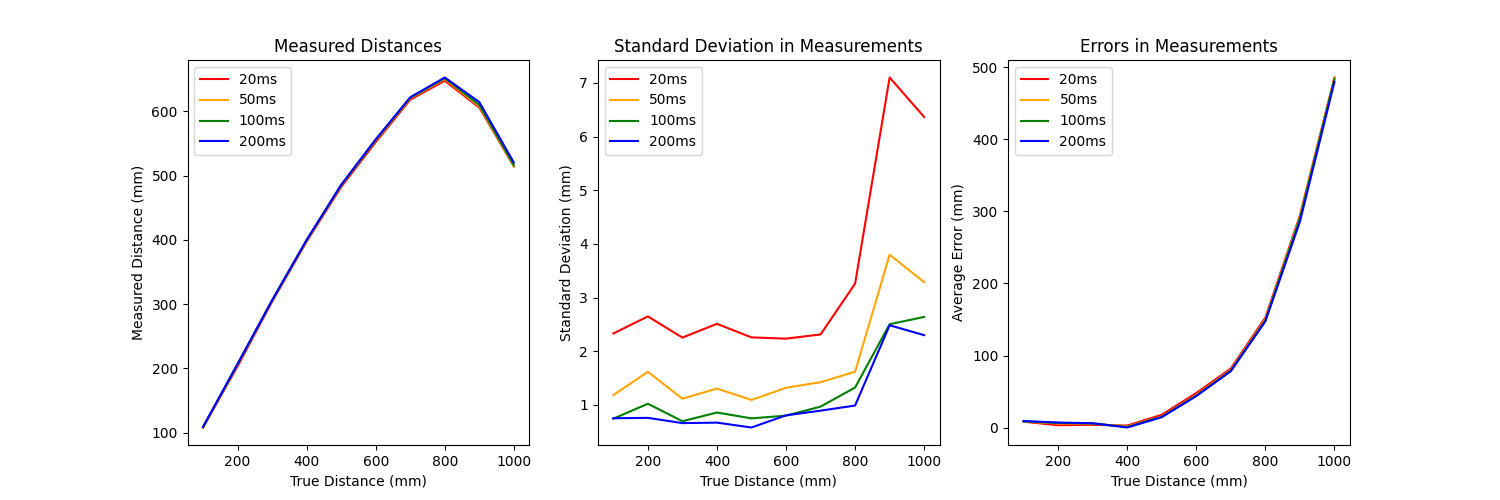

../_images/sweep_ranging.png

Two Time-of-Flight Sensors

Now that we’ve verified functionality with one sensor, we can add the other!

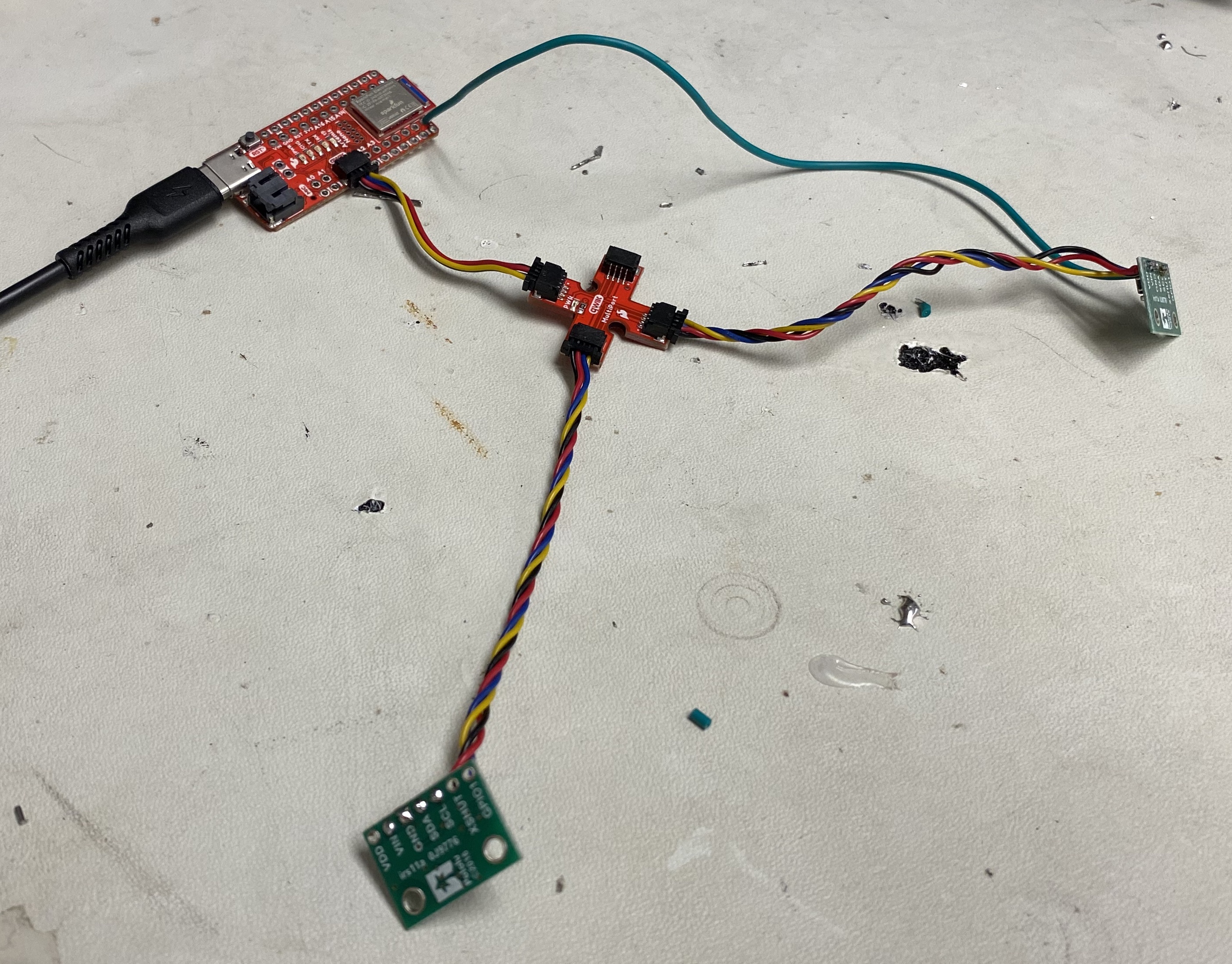

../_images/testing-setup-two.jpg

The testing setup for two Time-of-Flight sensors

We can instantiate the second distance sensor similar to the first, but giving the XSHUT pin number as well. This allows us to use the sensorOff function to turn it off with XSHUT, change the I2C address of the other sensor, then use sensorOn to turn it back on

Initialization for two ToF sensors
#define XSHUT 8

SFEVL53L1X distanceSensor;
SFEVL53L1X distanceSensor2(Wire, XSHUT);

void setup(void)
{
  Wire.begin();

  // ...

  pinMode(XSHUT, OUTPUT);
  distanceSensor2.sensorOff(); // Turn the second sensor off

  // Change the I2C address of the first sensor - default is 0x52
  distanceSensor.setI2CAddress(0x54);

  while (distanceSensor.begin() != 0) //Begin returns 0 on a good init
  {
    Serial.println("Sensor failed to begin. Please check wiring. Freezing...");
    delay(500);
  }
  Serial.println("Sensor 1 online!");

  distanceSensor2.sensorOn(); // Turn the second sensor back on
  while (distanceSensor2.begin() != 0) //Begin returns 0 on a good init
  {
    Serial.println("Sensor failed to begin. Please check wiring. Freezing...");
    delay(500);
  }
  Serial.println("Sensor 2 online!");
  distanceSensor.setDistanceModeShort();
  distanceSensor2.setDistanceModeShort();
}

To see just how fast we can get this data, we can have the sensors continuously ranging, and only collect data in the main loop when it’s ready:

Optimized data collection loop
void loop(void) {
  int start_time = millis();

  // Check the first distance sensor
  if (distanceSensor.checkForDataReady()) {
    int distance_1 = distanceSensor.getDistance();
    distanceSensor.clearInterrupt();
    Serial.print(" - Distance 1 (mm): ");
    Serial.println(distance_1);
  }

  // Check the second distance sensor
  if (distanceSensor2.checkForDataReady()) {
    int distance_2 = distanceSensor2.getDistance();
    distanceSensor2.clearInterrupt();
    Serial.print(" - Distance 2 (mm): ");
    Serial.println(distance_2);
  }

  // Print the time
  int end_time = millis();
  Serial.print("Loop Time (ms): ");
  Serial.println(end_time - start_time);
}
Sample output (50ms timing budget)
Loop Time (ms): 4
 - Distance 1 (mm): 4
Loop Time (ms): 7
Loop Time (ms): 4
Loop Time (ms): 4
Loop Time (ms): 4
Loop Time (ms): 4
Loop Time (ms): 4
Loop Time (ms): 3
 - Distance 2 (mm): 553
Loop Time (ms): 7
Loop Time (ms): 3
Loop Time (ms): 3
Loop Time (ms): 3
Loop Time (ms): 4
Loop Time (ms): 4
Loop Time (ms): 4
Loop Time (ms): 4
Loop Time (ms): 4
Loop Time (ms): 3
Loop Time (ms): 3
 - Distance 1 (mm): 5
Loop Time (ms): 7

We can see that we are able to loop much faster than our data acquisition; our limiting factor is our sensors’ ability to measure data, not our ability to receive it from them.

Time-of-Flight and IMU Data

Finally, we can combine all three sensors!

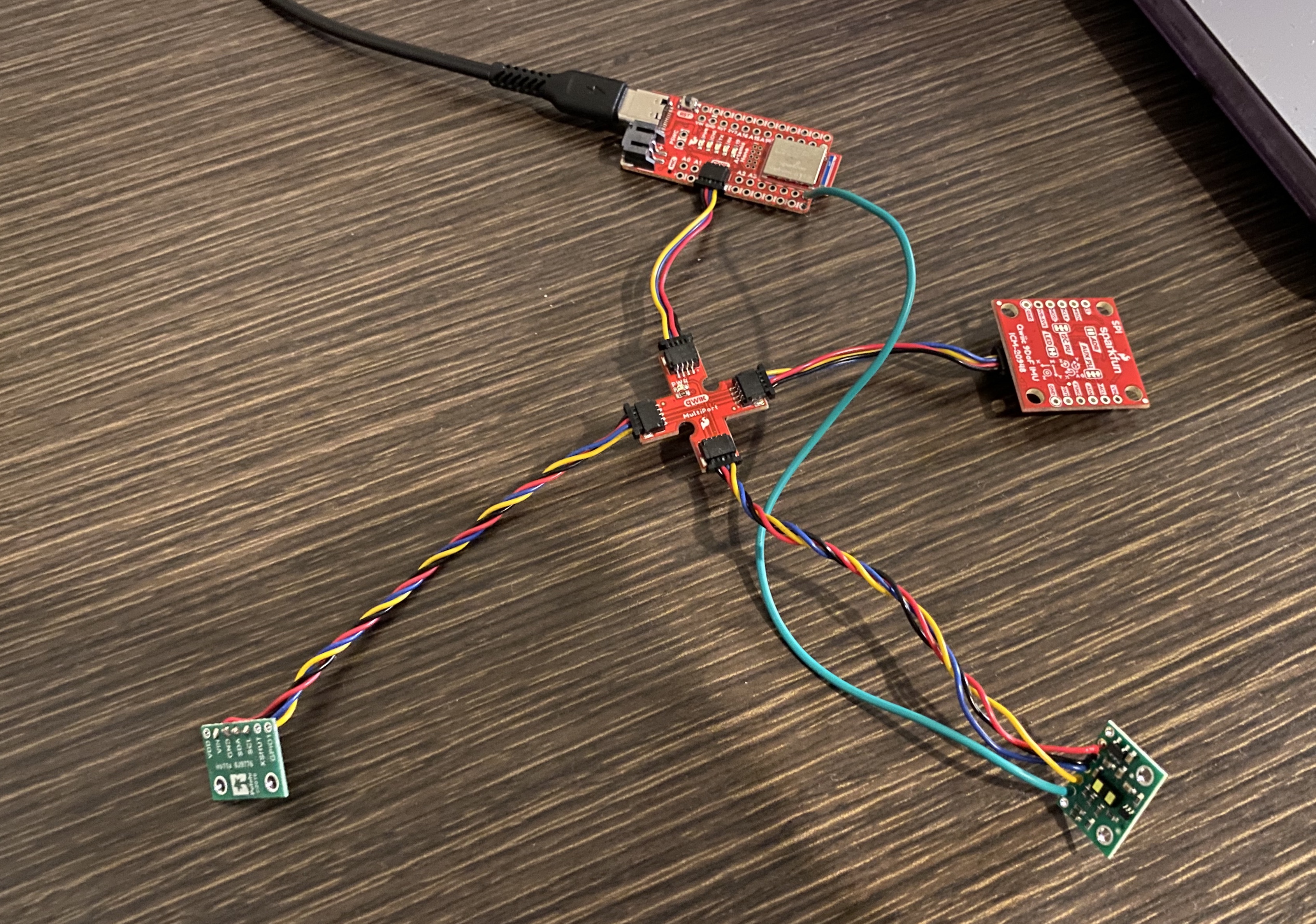

../_images/testing-setup-all.jpg

The testing setup for two Time-of-Flight sensors and the IMU sensor, as seen in the wiring diagram

We can build on our previous code to log and send data in bulk.

Data logging loop
float get_pitch() {
  float x, z;
  x = myICM.accX();
  z = myICM.accZ();

  return atan2(x, z) * 180 / M_PI;
}

float get_roll() {
  float y, z;
  y = myICM.accY();
  z = myICM.accZ();

  return atan2(y, z) * 180 / M_PI;
}

void log_data() {
  for (int i = 0; i < ENTRIES_TO_RECORD; i++) {
    data_time[i] = (int)millis();

    // -------------------------------------------------------------------
    // Distance Sensor 1
    // -------------------------------------------------------------------

    distanceSensor.startRanging();
    while (!distanceSensor.checkForDataReady()) {
      delay(1);
    }
    data_distance[i] =
        distanceSensor.getDistance();  // Get the result of the measurement from
                                       // the sensor
    distanceSensor.clearInterrupt();
    distanceSensor.stopRanging();

    // -------------------------------------------------------------------
    // Distance Sensor 2
    // -------------------------------------------------------------------

    distanceSensor2.startRanging();
    while (!distanceSensor2.checkForDataReady()) {
      delay(1);
    }
    data_distance_two[i] =
        distanceSensor2.getDistance();  // Get the result of the measurement
                                        // from the sensor
    distanceSensor2.clearInterrupt();
    distanceSensor2.stopRanging();

    // -------------------------------------------------------------------
    // IMU- Gyroscope
    // -------------------------------------------------------------------

    while (!myICM.dataReady()) {
      delay(1);
    }
    myICM.getAGMT();
    data_pitch[i] = get_pitch();
    data_roll[i] = get_roll();
  }
}

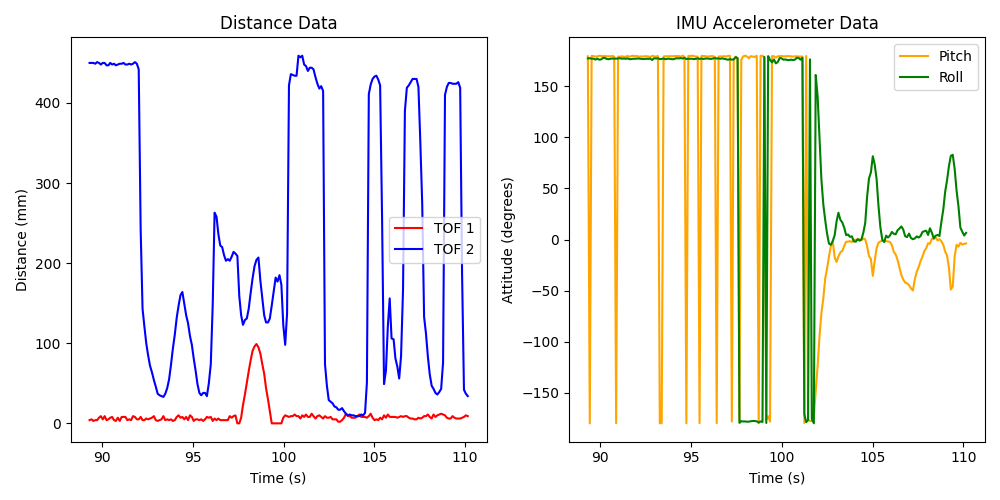

../_images/all_sensor_data.png

IR Distance Sensors

In this lab, we used an IR Time-of-Flight sensor; however, other IR distance sensors exist, which we may wish to compare on key metrics. These include:

Triangulation/Angle-Based IR

  • Example: SHARP GP2Y0A21YK0F

  • Operation: Measure the angle of reflected IR light to determine position

  • Price: $6.19

  • Range: 10 - 80cm

  • Pros:

    • Simple calculations

    • Insensitive to target color/texture

    • Cheap

  • Cons:

    • Bulky (large sensor footprint)

    • Variation with ambient light

Amplitude IR

  • Example: VCNL4040

  • Operation: Meausure the strength of reflected IR light

  • Price: $7.50

  • Range: 0 - 20cm

  • Pros:

    • Simple calculations

    • Cheap

  • Cons:

    • Limited range

    • Sensitive to target color/texture and ambient light (may need to change integration time)

Time-of-Flight IR

  • Example: VL53L1X (our sensor!)

  • Operation: Measure the time for IR light to reflect

  • Price: $23.50

  • Range: 4 - 400cm

  • Pros:

    • Small sensor

    • Insensitive to target color/texture

    • Range

  • Cons:

    • Complex calculations

    • Price

For the steep price of our sensor, we get a lot more range, as well as a reasonably small profile that can fit on our car.

We also get resilience to the color/texture of what we detect. To verify this, I swept distance measurements again with our ToF sensor targeting a variety of household objects (a rough red folder, a cereal box, and a cutting board). The results below show some variation as colors become cooler, but not in the range of quality results; overall, they were similar to each other and previous results.

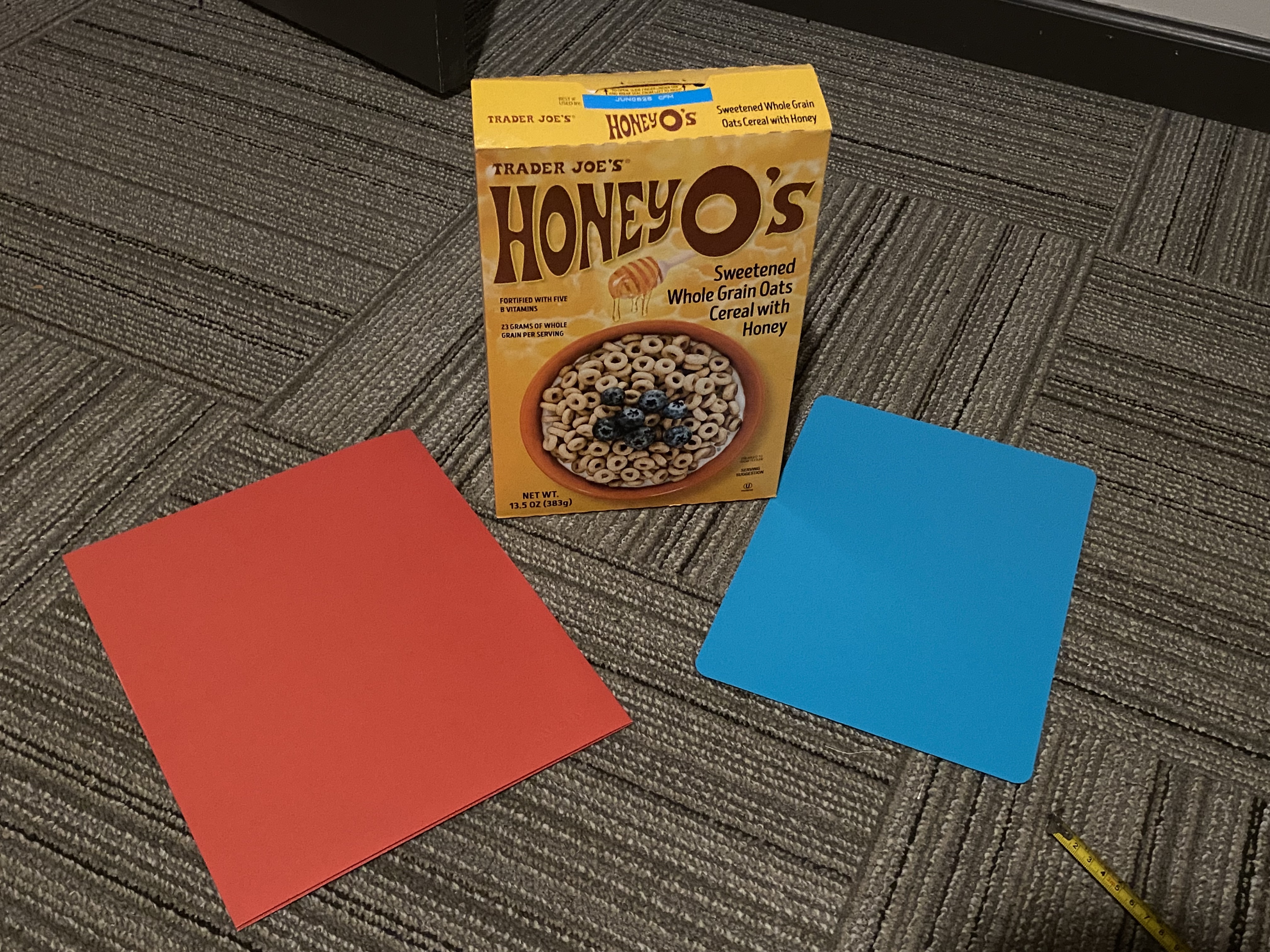

../_images/objects.jpg

The objects used for testing

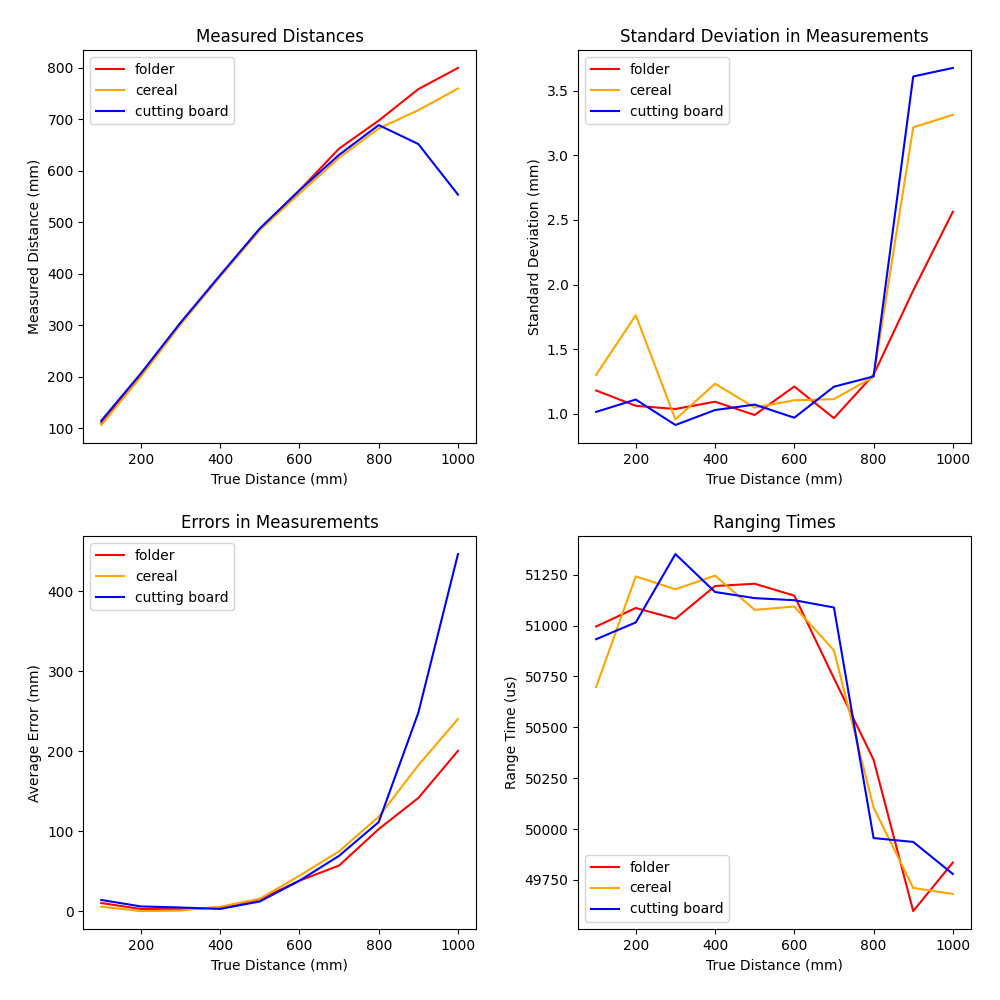

../_images/sweep_color.png
