Lab 5: PID Control

Now that we’ve assembled our robot, we can introduce a PID control system to help it navigate. In this lab, we use PID control to navigate the robot 1 foot away from a wall.

Prelab

In this lab, it was especially important to communicate data over Bluetooth, as it was the only way to gain visibility into the values used in the algorithm, and adjust PID gains appropriately. To do this, I defined a function log_pid_data on the Arduino, which our PID loop could call; it would log various pieces of data, including:

  • The current time

  • Whether ToF data was ready

  • The measured distance

  • The terms generated from PID control (including the integrator terms with and without windup protection - useful for the M.Eng. portion)

  • The total PID control output

  • The PWM sent to the motors

void log_pid_data( int time, bool data_ready, int distance, int kp_term,
                   int ki_term, int windup_term, int kd_term, int total_term, int motor_pwm )
{
  if ( entry_idx < MAX_NUM_ENTRIES ) {
    time_entries[entry_idx]       = time;
    data_ready_entries[entry_idx] = data_ready;
    distance_entries[entry_idx]   = distance;
    kp_term_entries[entry_idx]    = kp_term;
    ki_term_entries[entry_idx]    = ki_term;
    windup_term_entries[entry_idx] = windup_term;
    kd_term_entries[entry_idx]    = kd_term;
    total_term_entries[entry_idx] = total_term;
    motor_pwm_entries[entry_idx]  = motor_pwm;
    entry_idx += 1;
  }
}

From here, I defined a BLE command GET_PID_DATA to retrieve all of the recorded data

// Case statement from within handle_command()

case GET_PID_DATA:
   Serial.printf("Getting data...\n");
   for ( int i = 0; i < entry_idx; i++ ) {
     tx_estring_value.clear();
     tx_estring_value.append( time_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( (int) data_ready_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( distance_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( kp_term_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( ki_term_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( windup_term_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( kd_term_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( total_term_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( motor_pwm_entries[i] );
     tx_characteristic_string.writeValue( tx_estring_value.c_str() );
   }
   break;

All that was needed to receive the data was a custom handler to receive BLE notifications in Python:

def parse_data( data: str ):
  data_components = data.split("|")
  time       = (float(data_components[0]) / 1000)
  ready = bool(int(data_components[1]))
  distance   = int(data_components[2])
  kp_term    = int(data_components[3])
  ki_term    = int(data_components[4])
  windup_term = int(data_components[5])
  kd_term    = int(data_components[6])
  total_term = int(data_components[7])
  motor_pwm  = int(data_components[8])
  return time, ready, distance, kp_term, ki_term, windup_term, kd_term, total_term, motor_pwm

def data_handler(_uid, response):
  global i
  time, ready, distance, kp_term, ki_term, windup_term, kd_term, total_term, motor_pwm = parse_data(response.decode())
  data_time.append(time)
  data_ready.append(ready)
  data_distance.append(distance)
  data_kp_term.append(kp_term)
  data_ki_term.append(ki_term)
  data_windup_term.append(windup_term)
  data_kd_term.append(kd_term)
  data_total_term.append(total_term)
  data_motor_pwm.append(motor_pwm)
  i = i + 1
  print(f"{i * 100 / NUM_SAMPLES:.2f}% done", end = '\r')

ble.start_notify(ble.uuid['RX_STRING'], data_handler)
ble.send_command(CMD.GET_PID_DATA, "")

After testing with some dummy data, I was successfully able to communicate data and parse it, providing an invaluable tool for later debugging.

The other thing I did before beginning the lab was to revisit code from past labs, and package them into object-oriented classes for easier handling and re-use. As an example, here is the header file for my Car implementation (which utilizes the Wheel class to drive motors):

class Car {
 public:
  Car( int MOTOR1_IN1_PIN, int MOTOR1_IN2_PIN, int MOTOR2_IN1_PIN,
       int MOTOR2_IN2_PIN )
      : motor1( MOTOR1_IN1_PIN, MOTOR1_IN2_PIN ),
        motor2( MOTOR2_IN1_PIN, MOTOR2_IN2_PIN ) {};

  // Calibration from Lab 4
  void set_motor2_calibration( float factor )
  {
    motor2.set_calibration_factor( factor );
  }

  // Motor functions from Lab 4
  void forward( uint8_t pwm );
  void backward( uint8_t pwm );
  void left( uint8_t pwm );
  void right( uint8_t pwm );
  void stop();
  void coast();

 private:
  Wheel motor1, motor2;
};

This makes our code more portable and abstracts the details from the PID interface.

Designing the PID Controller

In this lab, we built up to a PID control system, which uses proportional, integral, and derivative error terms to determine how much to drive the motors to get 1 foot from a wall, determining motor PWM from error terms:

\[u(t) = K_Pe(t) + K_I \int_0^te(t)\delta t + K_D \frac{\delta e(t)}{\delta t}\]

I began with only using a proportional term:

void PID::update( int u )
{
   int error = u - set_point;
   terms.kp_term = error * params.kp;
}

int PID::get_control()
{
  return terms.kp_term;
}

A PID object was updated in the main loop with new ToF values when available (using the previous if not):

void run_pid_step()
{
  curr_time = millis();
  int curr_distance, curr_kp_term, curr_ki_term, curr_ki_windup,
      curr_kd_term, curr_total_term, curr_motor_pwm;

  bool data_ready;
  if( tofs.sensor1.checkForDataReady() ){
    curr_distance = tofs.sensor1.getDistance();
    last_distance = curr_distance;
    tofs.sensor1.clearInterrupt();
    tofs.sensor1.stopRanging();
    tofs.sensor1.startRanging();
    data_ready = true;
  } else {
    curr_distance = last_distance;
    data_ready = false;
  }

  pid.update( curr_distance );
  curr_total_term   = pid.get_control();
  curr_kp_term      = pid.terms.kp_term;
  curr_ki_term      = pid.terms.ki_term;
  curr_ki_windup    = pid.terms.ki_windup_term;
  curr_kd_term      = pid.terms.kd_term;
  curr_motor_pwm = pid.scale( curr_total_term );
  if ( curr_motor_pwm > 0 ) {
    car.forward( curr_motor_pwm );
  }
  else {
    car.backward( -1 * curr_motor_pwm );
  }

  log_pid_data( curr_time, data_ready, curr_distance, curr_kp_term,
                curr_ki_term, curr_ki_windup, curr_kd_term, curr_total_term, curr_motor_pwm );
}

void loop()
{
  // Main loop code...
  while ( central.connected() ) {
    if ( run_pid ) { // Set by RUN_PID BLE Command
      run_pid_step();
      if ( curr_time - pid_start_time > 10000 ) {
        stop_pid(); // run_pid = false
      }
    }
  }
}

Note that after 10 seconds, or if Bluetooth disconnects, PID control stops (as a failsafe).

Also note that I included a pid.scale() function; this imposed an upper limit on the PWM value, moved it outside of the deadband, and also helped account for the lesser drive strength I observed when reversing:

int PID::scale( int pid_output )
{
  float intermediate_term = pid_output;

  // Scale outside deadband
  if ( intermediate_term >= 0 ) {
    intermediate_term += deadband;
  }
  else {
    intermediate_term -= deadband * 1.5;
  }

  // Reverse having issues, so scale
  if( intermediate_term < 0 ){
    intermediate_term *= 1.5;
  }

  // Max PWM of 120
  if ( intermediate_term > 120 ) {
    intermediate_term = 120;
  } else if ( intermediate_term < -120 ) {
    intermediate_term = -120;
  }

  return intermediate_term;
}

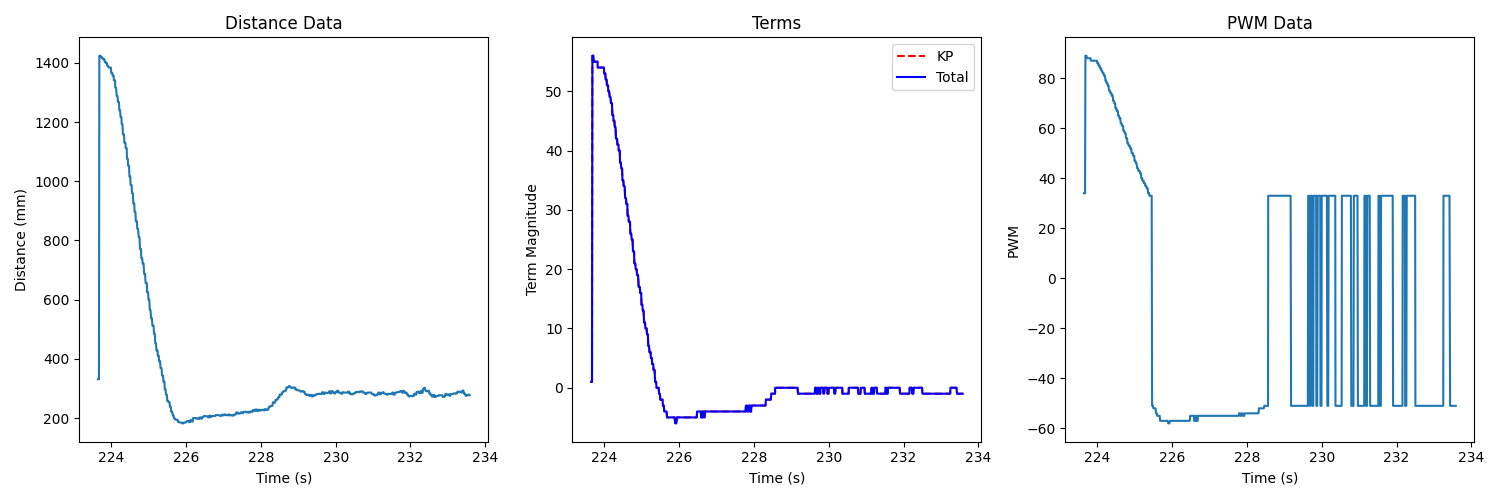

From here, I was able to get a successful result using \(K_p = 0.05\), albeit with some overshooting.

../_images/prop-0.05.png

(The robot initially turns from some slipping, not lack of calibration).

From here, I added an integral term:

void PID::update( int u )
{
   int error = u - set_point;
   if ( first_time ) { // Only run the first time, to set last_time
     last_time = micros();
   }

   // ---------------------------------------------------------------------
   // Proportional
   // ---------------------------------------------------------------------

   terms.kp_term = error * params.kp;

   // ---------------------------------------------------------------------
   // Integral
   // ---------------------------------------------------------------------

   int curr_time = micros();
   float dt = (float)(curr_time - last_time);
   last_time = curr_time;

   // Perform in terms of seconds, like model
   if( !this->clamp(error) ){
     terms.ki_term += params.ki * ((float) error) * dt / 1000000.0;
   }

   terms.ki_windup_term += params.ki * ((float) error) * dt / 1000000.0;
}

int PID::get_control()
{
  // PI Controller
  curr_control = terms.kp_term + terms.ki_term;
  return curr_control;
}

Note the only integrate when clamp() is false; this is discussed more in the M.Eng. section.

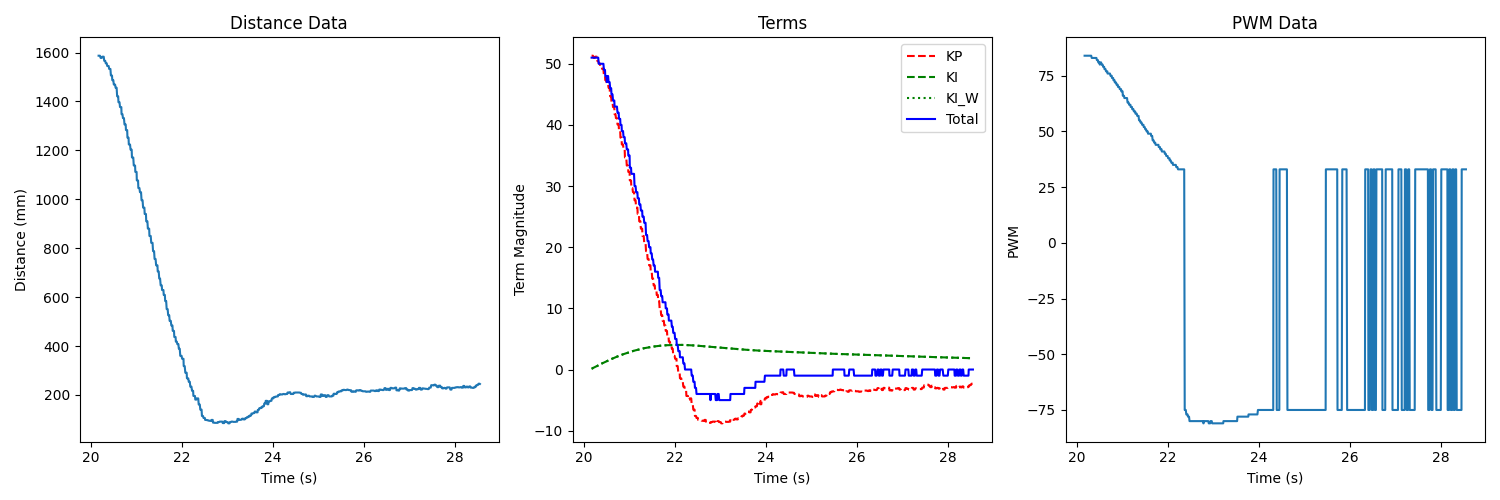

I found initial success with \(K_p = 0.04, K_I = 0.003\):

../_images/prop-int.png

This resulted in a constant offset from the integrator; however, this was resolved later by moving faster, clamping the integrator on the approach. (I also had some calibration issues from motor depletion, fixed by charging the battery).

Finally, I introduced a derivative term to slow the approach. To avoid derivative kick, I low-passed it by factoring in the previous value (finding experimentally that \(\alpha = 0.25\) works well), and didn’t update the first time (when \(\delta t\) was near-zero):

void PID::update( int u )
{
   int error = u - set_point;
   if ( first_time ) {
     last_time = micros();
     error_hist = error;
   }

   // ---------------------------------------------------------------------
   // Proportional
   // ---------------------------------------------------------------------

   terms.kp_term = error * params.kp;

   // ---------------------------------------------------------------------
   // Integral
   // ---------------------------------------------------------------------

   int curr_time = micros();
   float dt = (float)(curr_time - last_time);
   last_time = curr_time;

   // Perform in terms of seconds, like model
   if( !this->clamp(error) ){
     terms.ki_term += params.ki * ((float) error) * dt / 1000000.0;
   }

   terms.ki_windup_term += params.ki * ((float) error) * dt / 1000000.0;

   // ---------------------------------------------------------------------
   // Derivative
   // ---------------------------------------------------------------------

   if( !first_time ){
     float derivative = (float)(error - error_hist) * 1000000.0 / dt;
     terms.kd_term = params.kd * (float)((float)(alpha * derivative) + ((float)(1 - alpha) * terms.kd_term));
   }
}

int PID::get_control()
{
  // PID Controller
  curr_control = terms.kp_term + terms.ki_term + terms.kd_term;
  return curr_control;
}

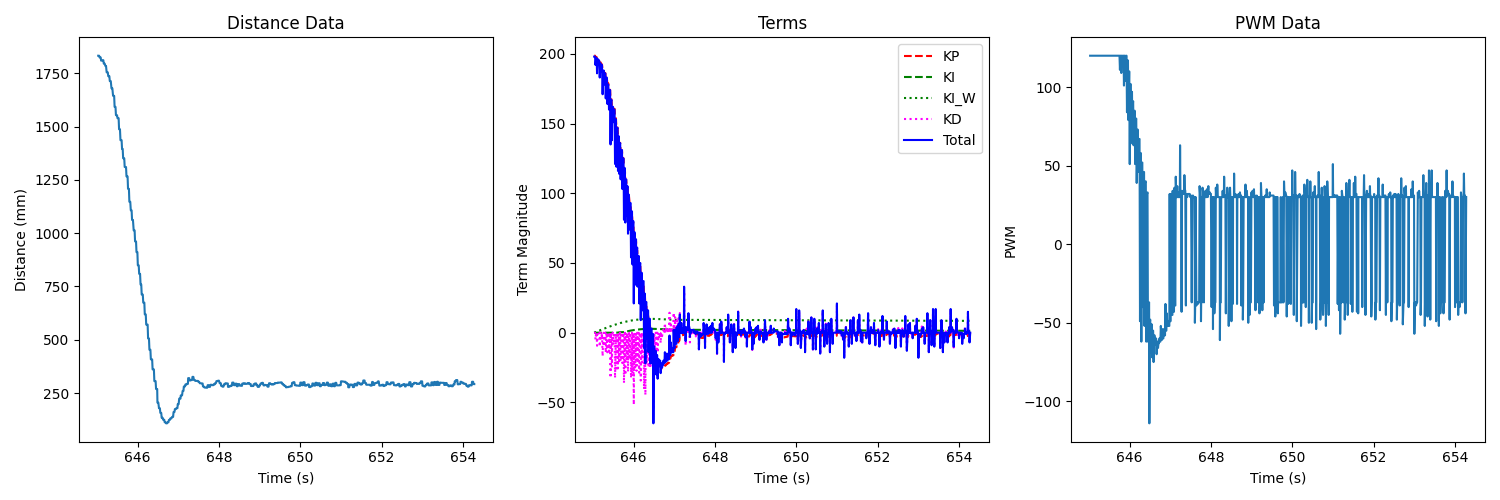

This final PID controller worked well with \(K_P = 0.13, K_I = 0.008, K_D = 0.05\)

../_images/prop-int-der-2m-nointerp.png

Range/Sampling Time

The PID controller is limited by how often we can get new data; to help, I increased our data rate by changing the ranging time, sacrificing speed for accuracy:

#include "SparkFun_VL53L1X.h"

// In ToF sensor initialization

sensor.setTimingBudgetInMs( 33 );
sensor.setIntermeasurementPeriod( 40 );

We can use the logger data in Python to determine loop and data rates:

loop_frequency = (len(data_time) - 1) / (data_time[-1] - data_time[0])
print(f"Loop Frequency: {loop_frequency:>7.2f} Hz")

ready_data_times = []
for i in range(len(data_time)):
  if( data_ready[i] ):
    ready_data_times.append(data_time[i])

data_frequency = (len(ready_data_times) - 1) / (ready_data_times[-1] - ready_data_times[0])
print(f"Data Frequency: {data_frequency:>7.2f} Hz")
../_images/data-rate.png

I was getting a new value every ~4 iterations (28Hz approximately matching the 40ms sampling interval). To improve upon this, I kept track of past distances to linearly extrapolate new data points when distance isn’t available:

Revised PID step
int interp_distance(){
  // Interpolate distance when none available
  if( last_last_distance_valid ){
    float slope = ((float)(last_distance      - last_last_distance)) /
                  ((float)(last_distance_time - last_last_distance_time));

    return last_distance + (slope * ((float)millis() - last_distance_time));
  }

  // Otherwise, return last data point
  return last_distance;
}

void run_pid_step()
{
  curr_time = millis();
  int curr_distance;

  bool data_ready; // Use to log if data was ready
  if( tofs.sensor1.checkForDataReady() ) {
    // Shift values
    last_last_distance       = last_distance;
    last_last_distance_valid = last_distance_valid;
    last_last_distance_time  = last_distance_time;

    curr_distance       = tofs.sensor1.getDistance();
    last_distance       = curr_distance;
    last_distance_time  = curr_time;
    last_distance_valid = true;
    data_ready          = true;

    // Start ranging again
    tofs.sensor1.clearInterrupt();
    tofs.sensor1.stopRanging();
    tofs.sensor1.startRanging();
  } else {
    curr_distance = interp_distance();
    data_ready = false;
  }
  // Execute PID control like before...
}

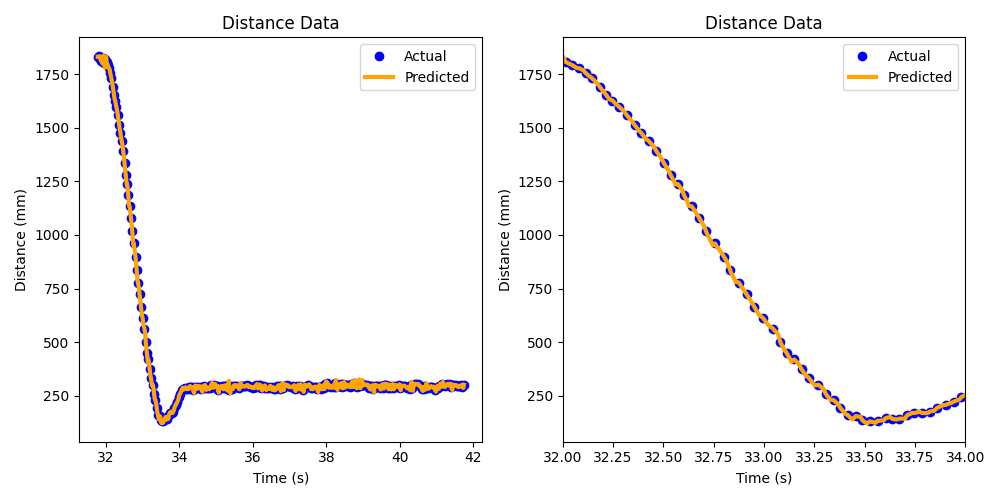

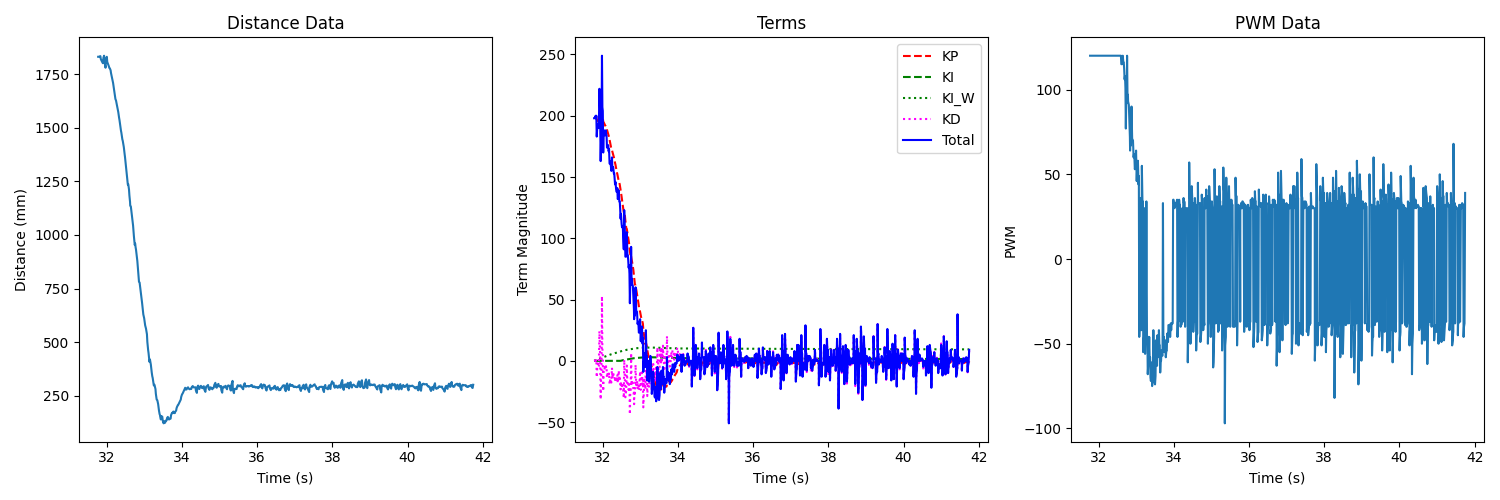

Comparing to before, our better data helped to avoid oscillations:

../_images/prop-int-der-2m-interp.png ../_images/distance-data.png

Final System

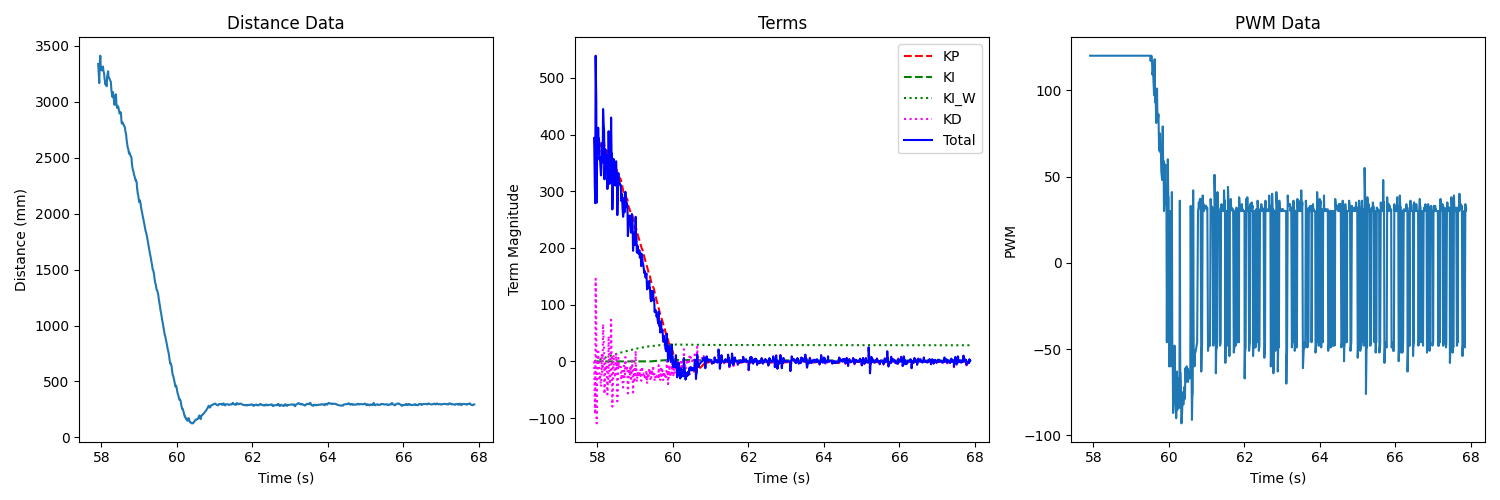

We can demonstrate the system’s capabilities to settle quickly by running from a long distance (around 3.5 meters).

../_images/prop-int-der-3m5-demo.png

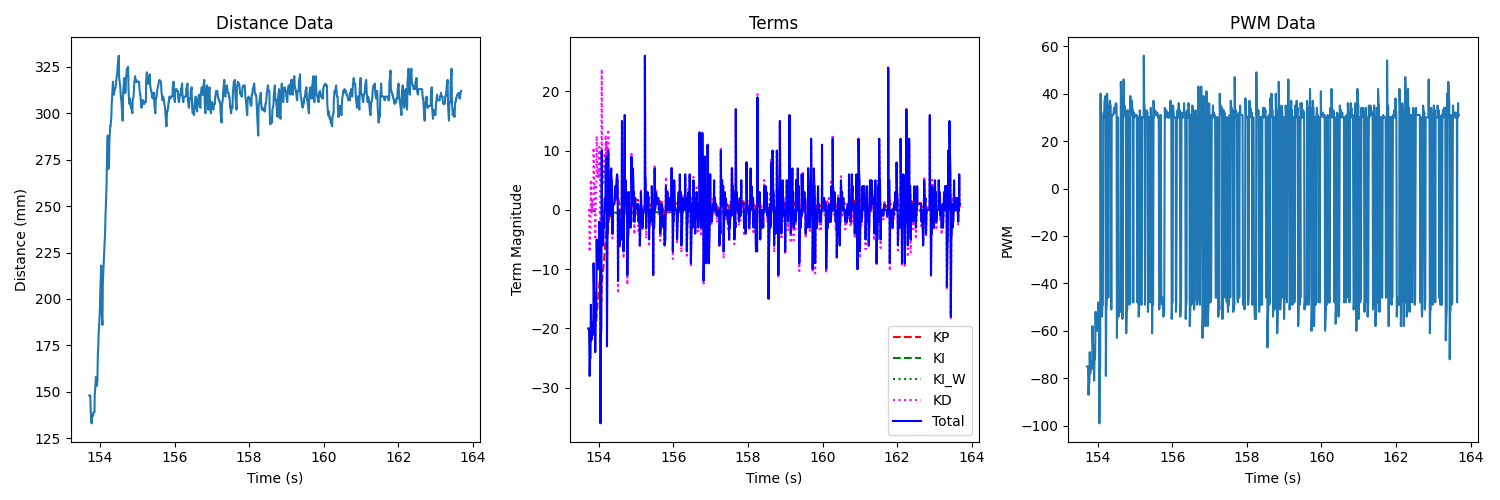

It also showed success when starting closer than the set point, around half a foot:

../_images/prop-int-der-1f-demo.png

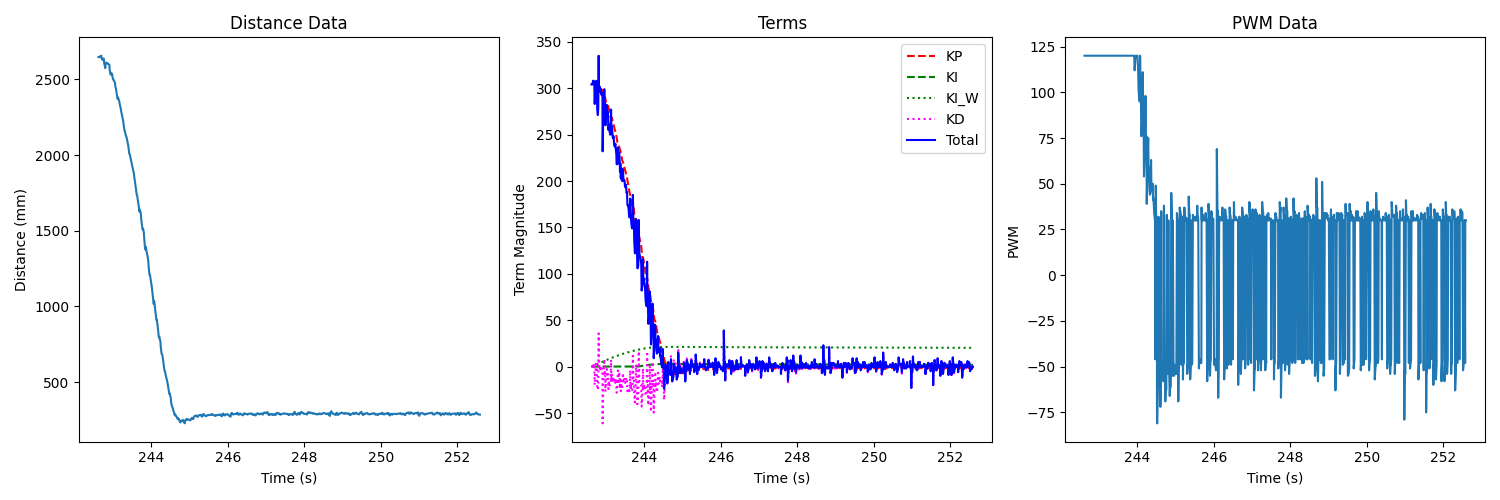

Finally, the closed-loop control allows it to run successfully on multiple surfaces, including the carpet in my apartment (having less oscillation from more traction), about 3 meters:

../_images/prop-int-der-3m-carpet.png

[ECE 5160] Integrator Windup

An important factor in our controller is protection against windup, where the integrator excessively accumulates when not moving, such that the overshoot caused by buildup is large. We protect against this by only accumulating when we’re not “clamping”,:

bool PID::clamp(int error) {
  // Clamp if we're at the maximum control and our error sign matches
  return (( curr_control > 180 ) || ( curr_control < -180 )) &
         (error * curr_control > 0);
}

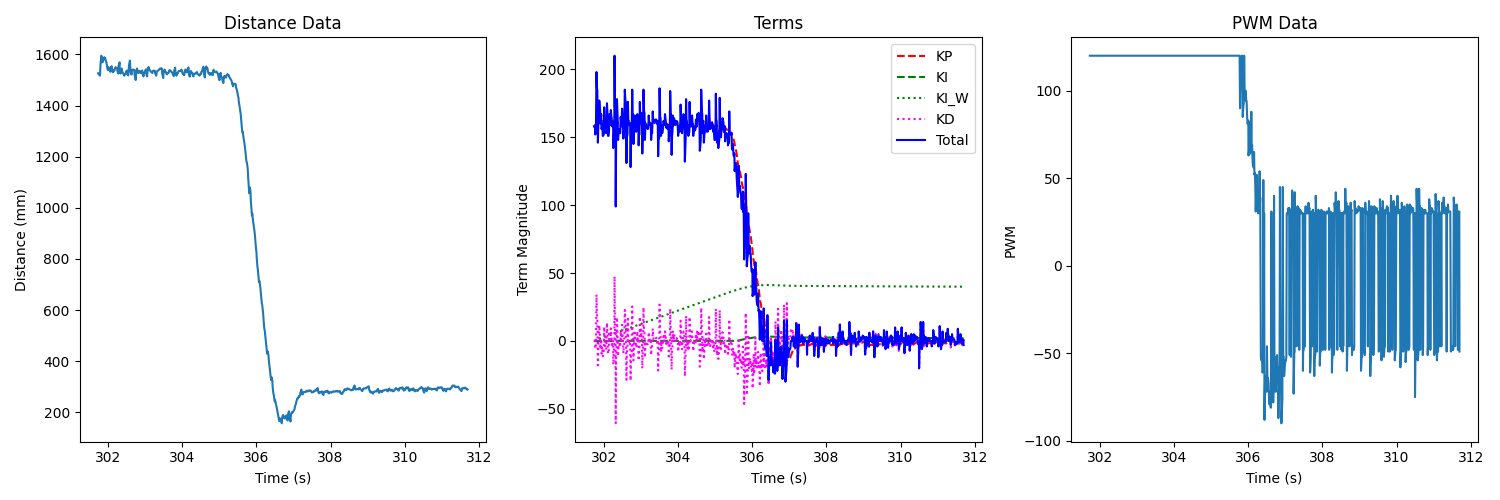

To show this effect, I ran the same control loop while accumulating a non-clamped term, and initially held the car in-place to accumulate error:

../_images/prop-int-der-windup-demo.png

We can see that the non-clamped term builds up (“winds up”), which may lead to overshoot. However, since our actual term is clamped, no such buildup occurs when at max control, and we don’t encounter a large overshoot.

Acknowledgements

This lab was one of the hardest so far for me, but also one of the most educational. I hadn’t encountered PID controllers before, and struggled learning how best to tune them and what different behaviours meant. After going through the lab, I feel much more confident in PID controllers, and appreciate how relatively few lines of code can capture complex behaviours. I’d like to credit the TAs a lot to my success, for staring at my plots with me and figuring out the best next steps.
