Lab 8: Stunts!

With the high-speed state estimation provided by the Kalman Filter, we now have enough information to perform a quick stunt. For this lab, I chose to complete the flip (the cooler stunt, in my opinion).

Flip State

I divided the flip into three states; IDLE, APPROACHING, and GO_AWAY:

• The car would start and wait in IDLE until instructed to perform a flip over BLE; at this point, the state changes to APPROACHING. In IDLE, the car was stationary.

• When in APPROACHING, we would drive the car forward at full speed. Once the distance between the car and the wall became less than 1.2m, we progressed to GO_AWAY

• We would remain in GO_AWAY for 1.5 seconds, at which point we’d return to IDLE. In GO_AWAY, the motors would go full speed in reverse, to both initiate a flip and go away from the wall.

These state changes were part of a flip_step function, which was called from the main loop (resulting in a small latency between loop iterations). Notice that I re-used the Car object from Lab 5 to abstract the pin operations to change the motors, highlighting the code reusability from C++ classes:

void flip_step()
{
  curr_time = millis();
  int curr_distance, curr_motor_pwm;
  float curr_distance_kf;

  // Get data when ready
  bool data_ready;
  if ( tofs.sensor1.checkForDataReady() ) {
    curr_distance = tofs.sensor1.getDistance();
    tofs.sensor1.clearInterrupt();
    tofs.sensor1.stopRanging();
    tofs.sensor1.startRanging();
    data_ready          = true;
    last_distance_valid = true;
  }
  else {
    data_ready = false;
  }

  // Update our filter
  curr_distance_kf = kf.update(
      data_ready, ( (float) last_motor_pwm ) / 120.0, curr_distance );

  // Compute the correct motor action to take
  switch ( curr_state ) {
    case IDLE:
      curr_motor_pwm = 0;
      last_time      = curr_time;
      break;
    case APPROACHING:
      curr_motor_pwm = 250;
      if ( last_distance_valid & ( curr_distance_kf < 1200.0 ) ) {
        curr_state = GO_AWAY;
        last_time  = curr_time;
      }
      break;
    case GO_AWAY:
      curr_motor_pwm = -250;
      if ( curr_time - last_time > 1500 ) {
        curr_state = IDLE;
      }
      break;
    default:
      curr_state = IDLE;
      curr_motor_pwm = 0;
  }

  // Execute the action
  if ( curr_motor_pwm > 30 ) {
    car.forward( curr_motor_pwm );
  }
  else if ( curr_motor_pwm < -30 ) {
    car.backward( -1 * curr_motor_pwm );
  }
  else {
    car.stop();
  }
  last_motor_pwm = curr_motor_pwm;

  // Log the data - shown below:
}

The state was also modified in our BLE switch statement with the RUN_FLIP command (to transition to the APPROACHING state):

// In `handle_command`
case RUN_FLIP:
   reset_data();
   curr_state = APPROACHING;
   break;

Lastly, I also re-used the code from Labs 5 - 7 to log the data in flip_step, and use the BLE command GET_DATA to send it to Python:

// In `flip_step`
if ( last_distance_valid & (
   curr_state == APPROACHING || curr_state == GO_AWAY
) ) {
  log_pid_data( curr_time, data_ready, curr_distance, curr_distance_kf,
                curr_motor_pwm );
}

// In `handle_command`

case GET_DATA:
   Serial.printf( "Getting data...(%d)\n", entry_idx );
   for ( int i = 0; i < entry_idx; i++ ) {
     tx_estring_value.clear();
     tx_estring_value.append( time_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( (int) data_ready_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( distance_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( dist_kf_entries[i] );
     tx_estring_value.append( "|" );
     tx_estring_value.append( motor_pwm_entries[i] );
     tx_characteristic_string.writeValue( tx_estring_value.c_str() );
   }
   break;

I initially included PID control after the flip to correct the angle; however, I experimentally found that this wasn’t needed, and introduced significant additional complexity that slowed down the main loop (getting yaw data, updating the PID controller, and determining how to use the output to correct the motors, including checking whether we’ve flipped yet), so I omitted it from the final version.

Demonstrations

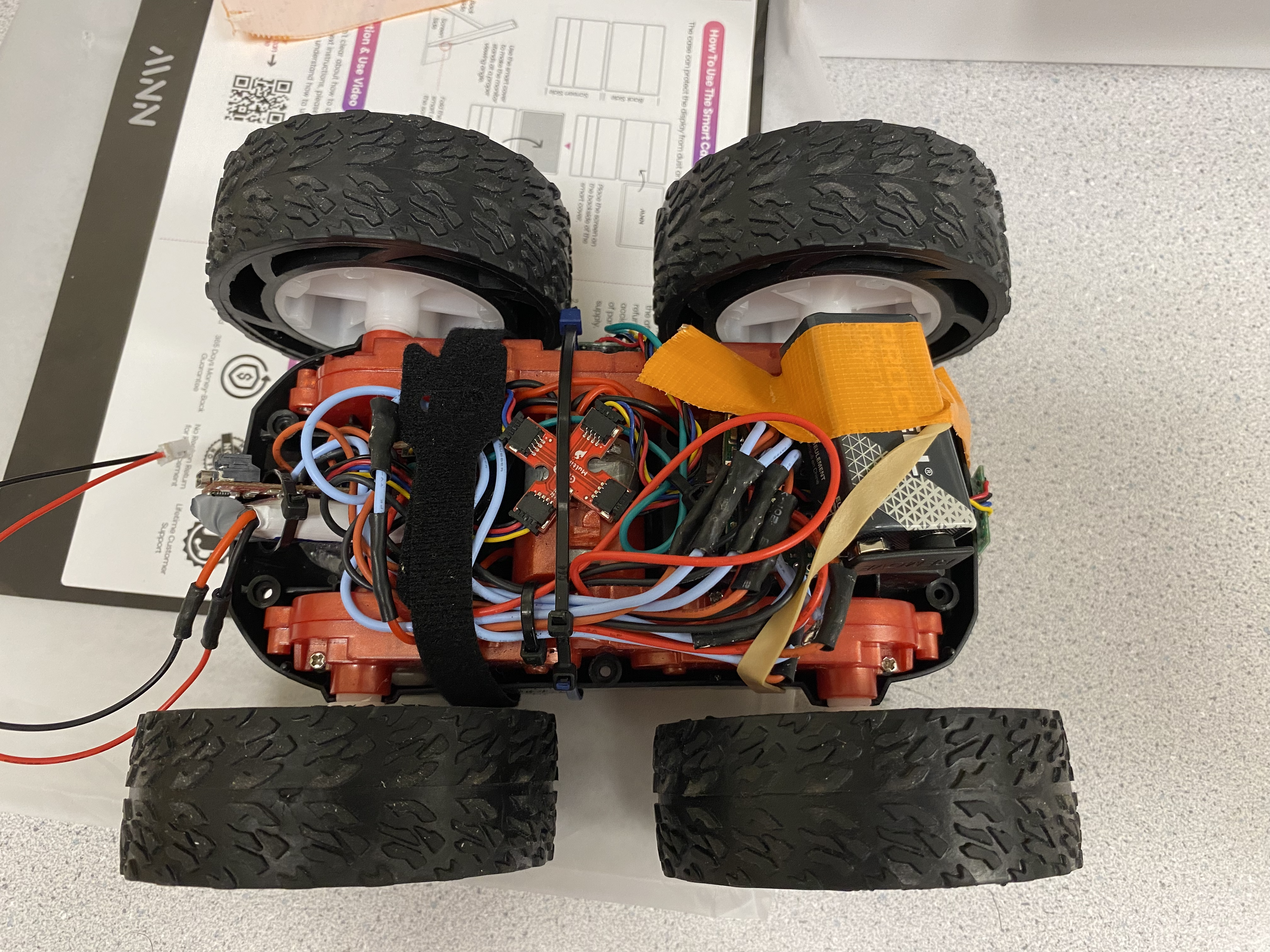

For my initial attempts to get Ned to flip, I increased the weight on the front by adding a 9V battery, to make flipping easier:

This was able to yield a successful attempt:

Flip 1

However, performing flips in this state was unreliable:

• The 9V battery was bulky enough to often become dislodged during the flip

• The wheels often slipped, losing the traction needed to execute the flip

To fix these issues:

• I replaced the 9V batter with two smaller AA batteries

• I added duct tape on the front wheels (the ones the flip occurred on). However, this resulted in too much traction, so I scuffed them up with dirt from the corner of the lab

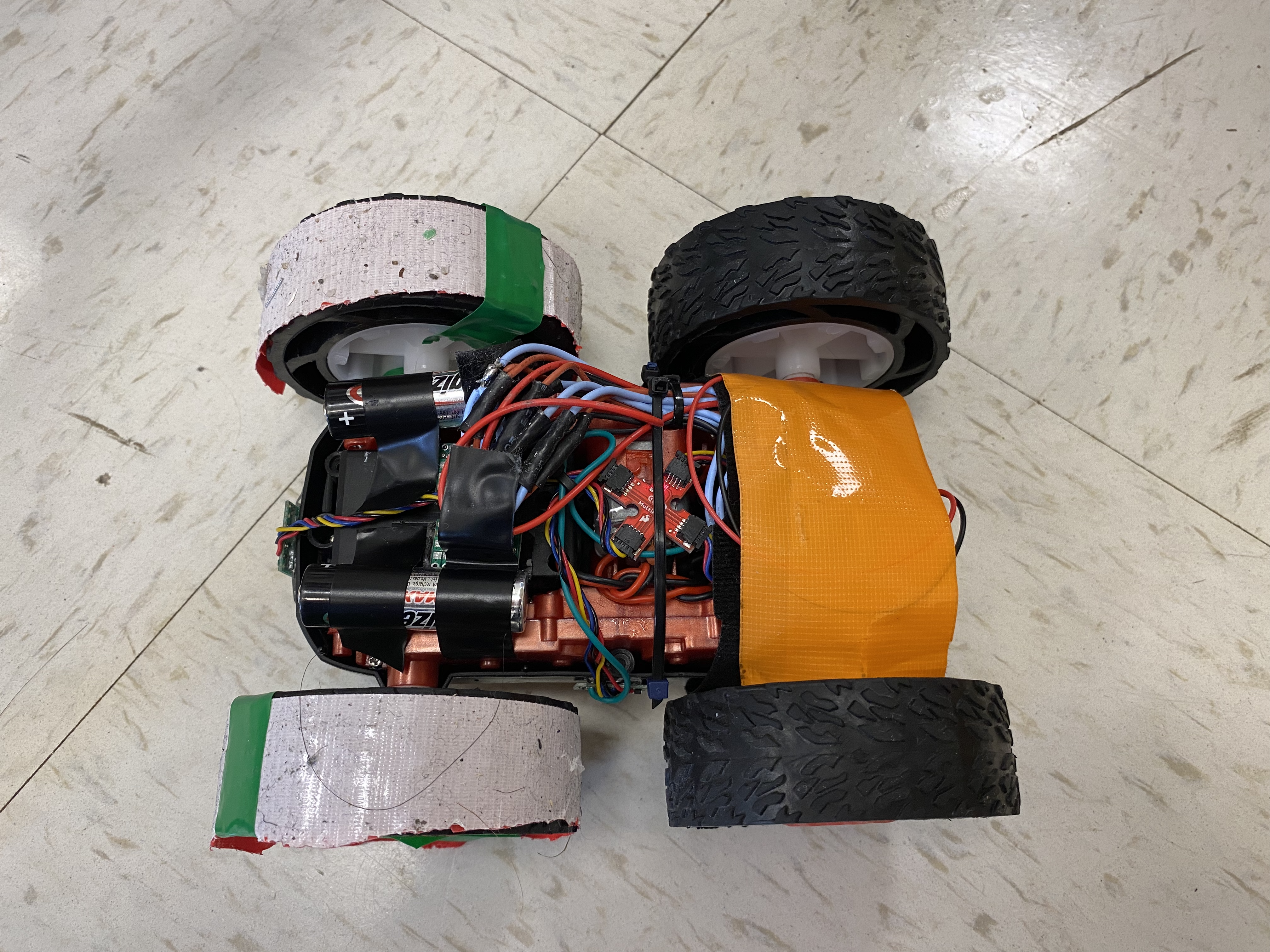

This approach (while slightly more gross) yielded significantly more reliable results:

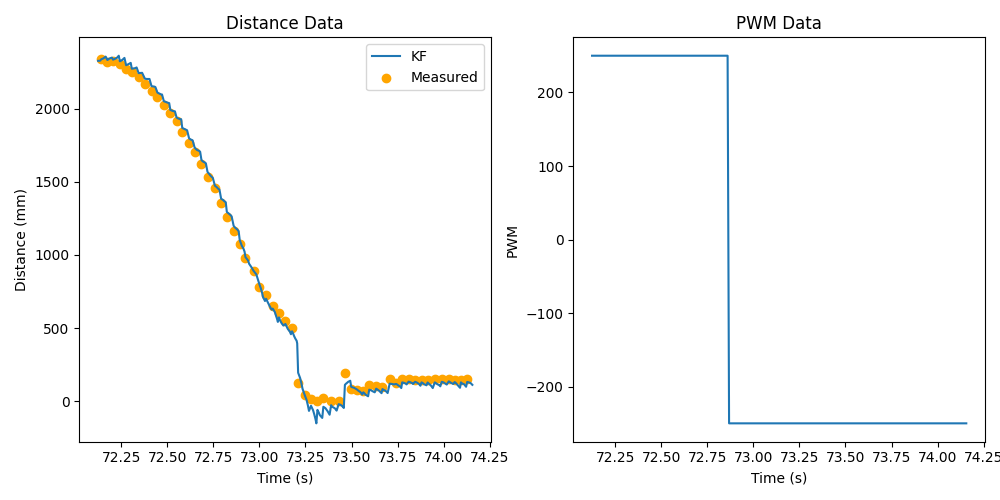

Flip 2

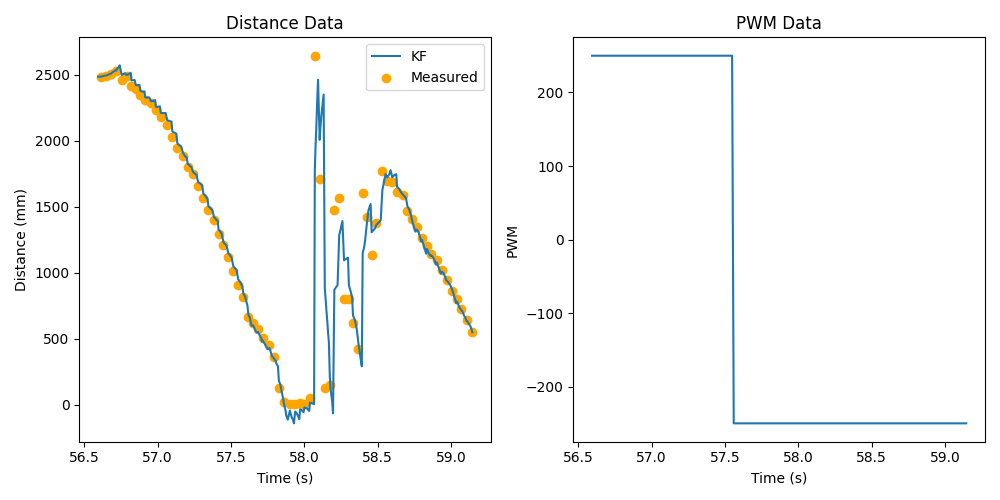

(The jitters are likely from detecting the ground)

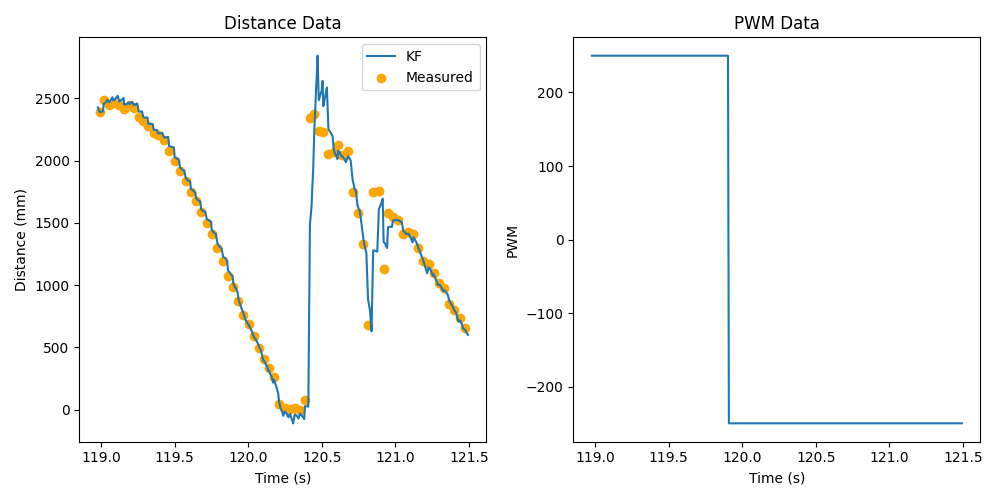

Flip 3

Flip 4

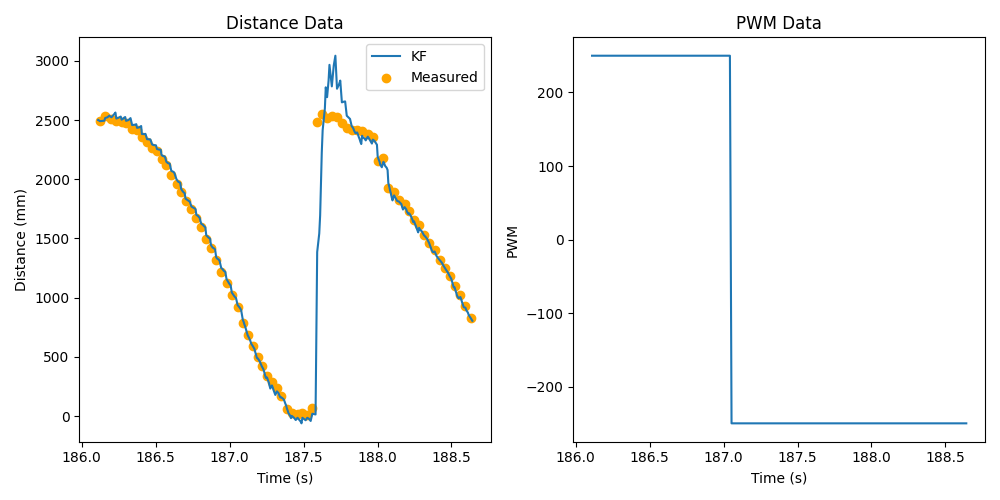

Notice from the plots that we start reversing significantly before the actual flip occurs; this is due to loss of traction. The Kalman filter estimations also significantly degrade after the flip, as our distance sensor has changed location.

Bloopers

In this trial-and-error process, some funny unsuccessful runs were inevitable. Enjoy!

Sideways Flip

… the Double?

… the TRIPLE?

Standing Up (???)
