Appendix A: Using the Zynq7 Processing System
Many designs will want to include the Zynq7 Processing System in their block designs; it helps define the connections from user hardware to the embedded microcontroller. Beyond this, it also provides some useful features, including:
A generated 50MHz clock (although the system can be directly configured to produce up to 4 clocks of different frequencies from the PLLs)
A reset signal (user hardware otherwise has no way to connect to the on-board reset button)
In the documentation, you will commonly see the system abbreviated as PS. The other common acronym is the other section of the board, the Programmable Logic (PL). If you don’t wish to use the system clock, the Zybo additionally provides a 125MHz reference clock directly to the PL.
Using in a Block Design
Using the PS in a block design involves instantiating the appropriate system. However, when you instantiate it, you will see a banner at the top indicating to Run Block Automation. Users should click this, and ensure that Apply Board Preset is checked. This is how the PS will know the correct pin mapping.
Presets

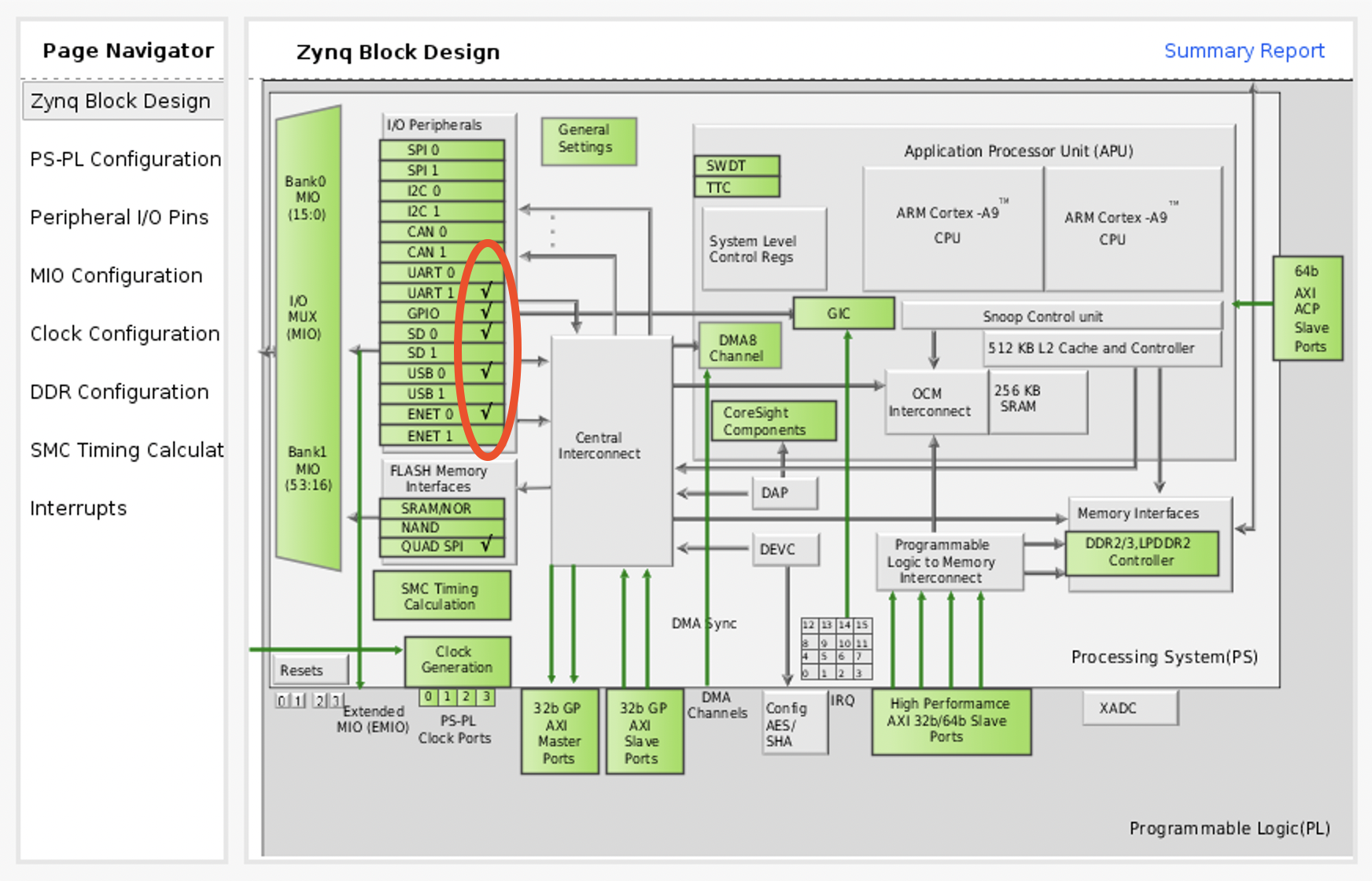

If you choose to further customize the board, you will notice that you can set the “preset” of the board. Unfortunately, this doesn’t work for the Zybo Z7-10 (source), and the presets don’t appear. Despite the current preset being “None”, our design is still properly configured; you can see this with the check marks on the block diagram, which indicate that the respective peripheral is configured:
Note that this additionally created DDR and FIXED_IO ports; those
are necessary (see below)
Top-Level Connections
Block Designs come with their own constraints. When instantiating the Zynq7 system, the constraints it creates are shown below:
############################################################################
##
## Xilinx, Inc. 2006 www.xilinx.com
############################################################################
## File name : ps7_constraints.xdc
##
## Details : Constraints file
## FPGA family: zynq
## FPGA: xc7z010clg400-1
## Device Size: xc7z010
## Package: clg400
## Speedgrade: -1
##
##
############################################################################
############################################################################
############################################################################
# Clock constraints #
############################################################################
create_clock -name clk_fpga_0 -period "20" [get_pins "PS7_i/FCLKCLK[0]"]
set_input_jitter clk_fpga_0 0.6
#The clocks are asynchronous, user should constrain them appropriately.#
############################################################################
# I/O STANDARDS and Location Constraints #
############################################################################
# Enet 0 / mdio / MIO[53]
set_property iostandard "LVCMOS18" [get_ports "MIO[53]"]
set_property PACKAGE_PIN "C11" [get_ports "MIO[53]"]
set_property slew "slow" [get_ports "MIO[53]"]
set_property drive "8" [get_ports "MIO[53]"]
set_property pullup "TRUE" [get_ports "MIO[53]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[53]"]
# Enet 0 / mdc / MIO[52]
set_property iostandard "LVCMOS18" [get_ports "MIO[52]"]
set_property PACKAGE_PIN "C10" [get_ports "MIO[52]"]
set_property slew "slow" [get_ports "MIO[52]"]
set_property drive "8" [get_ports "MIO[52]"]
set_property pullup "TRUE" [get_ports "MIO[52]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[52]"]
# UART 1 / rx / MIO[49]
set_property iostandard "LVCMOS18" [get_ports "MIO[49]"]
set_property PACKAGE_PIN "C12" [get_ports "MIO[49]"]
set_property slew "slow" [get_ports "MIO[49]"]
set_property drive "8" [get_ports "MIO[49]"]
set_property pullup "TRUE" [get_ports "MIO[49]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[49]"]
# UART 1 / tx / MIO[48]
set_property iostandard "LVCMOS18" [get_ports "MIO[48]"]
set_property PACKAGE_PIN "B12" [get_ports "MIO[48]"]
set_property slew "slow" [get_ports "MIO[48]"]
set_property drive "8" [get_ports "MIO[48]"]
set_property pullup "TRUE" [get_ports "MIO[48]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[48]"]
# SD 0 / cd / MIO[47]
set_property iostandard "LVCMOS18" [get_ports "MIO[47]"]
set_property PACKAGE_PIN "B14" [get_ports "MIO[47]"]
set_property slew "slow" [get_ports "MIO[47]"]
set_property drive "8" [get_ports "MIO[47]"]
set_property pullup "TRUE" [get_ports "MIO[47]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[47]"]
# SD 0 / data[3] / MIO[45]
set_property iostandard "LVCMOS18" [get_ports "MIO[45]"]
set_property PACKAGE_PIN "B15" [get_ports "MIO[45]"]
set_property slew "slow" [get_ports "MIO[45]"]
set_property drive "8" [get_ports "MIO[45]"]
set_property pullup "TRUE" [get_ports "MIO[45]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[45]"]
# SD 0 / data[2] / MIO[44]
set_property iostandard "LVCMOS18" [get_ports "MIO[44]"]
set_property PACKAGE_PIN "F13" [get_ports "MIO[44]"]
set_property slew "slow" [get_ports "MIO[44]"]
set_property drive "8" [get_ports "MIO[44]"]
set_property pullup "TRUE" [get_ports "MIO[44]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[44]"]
# SD 0 / data[1] / MIO[43]
set_property iostandard "LVCMOS18" [get_ports "MIO[43]"]
set_property PACKAGE_PIN "A9" [get_ports "MIO[43]"]
set_property slew "slow" [get_ports "MIO[43]"]
set_property drive "8" [get_ports "MIO[43]"]
set_property pullup "TRUE" [get_ports "MIO[43]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[43]"]
# SD 0 / data[0] / MIO[42]
set_property iostandard "LVCMOS18" [get_ports "MIO[42]"]
set_property PACKAGE_PIN "E12" [get_ports "MIO[42]"]
set_property slew "slow" [get_ports "MIO[42]"]
set_property drive "8" [get_ports "MIO[42]"]
set_property pullup "TRUE" [get_ports "MIO[42]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[42]"]
# SD 0 / cmd / MIO[41]
set_property iostandard "LVCMOS18" [get_ports "MIO[41]"]
set_property PACKAGE_PIN "C17" [get_ports "MIO[41]"]
set_property slew "slow" [get_ports "MIO[41]"]
set_property drive "8" [get_ports "MIO[41]"]
set_property pullup "TRUE" [get_ports "MIO[41]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[41]"]
# SD 0 / clk / MIO[40]
set_property iostandard "LVCMOS18" [get_ports "MIO[40]"]
set_property PACKAGE_PIN "D14" [get_ports "MIO[40]"]
set_property slew "slow" [get_ports "MIO[40]"]
set_property drive "8" [get_ports "MIO[40]"]
set_property pullup "TRUE" [get_ports "MIO[40]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[40]"]
# USB 0 / data[7] / MIO[39]
set_property iostandard "LVCMOS18" [get_ports "MIO[39]"]
set_property PACKAGE_PIN "C18" [get_ports "MIO[39]"]
set_property slew "fast" [get_ports "MIO[39]"]
set_property drive "8" [get_ports "MIO[39]"]
set_property pullup "TRUE" [get_ports "MIO[39]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[39]"]
# USB 0 / data[6] / MIO[38]
set_property iostandard "LVCMOS18" [get_ports "MIO[38]"]
set_property PACKAGE_PIN "E13" [get_ports "MIO[38]"]
set_property slew "fast" [get_ports "MIO[38]"]
set_property drive "8" [get_ports "MIO[38]"]
set_property pullup "TRUE" [get_ports "MIO[38]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[38]"]
# USB 0 / data[5] / MIO[37]
set_property iostandard "LVCMOS18" [get_ports "MIO[37]"]
set_property PACKAGE_PIN "A10" [get_ports "MIO[37]"]
set_property slew "fast" [get_ports "MIO[37]"]
set_property drive "8" [get_ports "MIO[37]"]
set_property pullup "TRUE" [get_ports "MIO[37]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[37]"]
# USB 0 / clk / MIO[36]
set_property iostandard "LVCMOS18" [get_ports "MIO[36]"]
set_property PACKAGE_PIN "A11" [get_ports "MIO[36]"]
set_property slew "fast" [get_ports "MIO[36]"]
set_property drive "8" [get_ports "MIO[36]"]
set_property pullup "TRUE" [get_ports "MIO[36]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[36]"]
# USB 0 / data[3] / MIO[35]
set_property iostandard "LVCMOS18" [get_ports "MIO[35]"]
set_property PACKAGE_PIN "F12" [get_ports "MIO[35]"]
set_property slew "fast" [get_ports "MIO[35]"]
set_property drive "8" [get_ports "MIO[35]"]
set_property pullup "TRUE" [get_ports "MIO[35]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[35]"]
# USB 0 / data[2] / MIO[34]
set_property iostandard "LVCMOS18" [get_ports "MIO[34]"]
set_property PACKAGE_PIN "A12" [get_ports "MIO[34]"]
set_property slew "fast" [get_ports "MIO[34]"]
set_property drive "8" [get_ports "MIO[34]"]
set_property pullup "TRUE" [get_ports "MIO[34]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[34]"]
# USB 0 / data[1] / MIO[33]
set_property iostandard "LVCMOS18" [get_ports "MIO[33]"]
set_property PACKAGE_PIN "D15" [get_ports "MIO[33]"]
set_property slew "fast" [get_ports "MIO[33]"]
set_property drive "8" [get_ports "MIO[33]"]
set_property pullup "TRUE" [get_ports "MIO[33]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[33]"]
# USB 0 / data[0] / MIO[32]
set_property iostandard "LVCMOS18" [get_ports "MIO[32]"]
set_property PACKAGE_PIN "A14" [get_ports "MIO[32]"]
set_property slew "fast" [get_ports "MIO[32]"]
set_property drive "8" [get_ports "MIO[32]"]
set_property pullup "TRUE" [get_ports "MIO[32]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[32]"]
# USB 0 / nxt / MIO[31]
set_property iostandard "LVCMOS18" [get_ports "MIO[31]"]
set_property PACKAGE_PIN "E16" [get_ports "MIO[31]"]
set_property slew "fast" [get_ports "MIO[31]"]
set_property drive "8" [get_ports "MIO[31]"]
set_property pullup "TRUE" [get_ports "MIO[31]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[31]"]
# USB 0 / stp / MIO[30]
set_property iostandard "LVCMOS18" [get_ports "MIO[30]"]
set_property PACKAGE_PIN "C15" [get_ports "MIO[30]"]
set_property slew "fast" [get_ports "MIO[30]"]
set_property drive "8" [get_ports "MIO[30]"]
set_property pullup "TRUE" [get_ports "MIO[30]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[30]"]
# USB 0 / dir / MIO[29]
set_property iostandard "LVCMOS18" [get_ports "MIO[29]"]
set_property PACKAGE_PIN "C13" [get_ports "MIO[29]"]
set_property slew "fast" [get_ports "MIO[29]"]
set_property drive "8" [get_ports "MIO[29]"]
set_property pullup "TRUE" [get_ports "MIO[29]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[29]"]
# USB 0 / data[4] / MIO[28]
set_property iostandard "LVCMOS18" [get_ports "MIO[28]"]
set_property PACKAGE_PIN "C16" [get_ports "MIO[28]"]
set_property slew "fast" [get_ports "MIO[28]"]
set_property drive "8" [get_ports "MIO[28]"]
set_property pullup "TRUE" [get_ports "MIO[28]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[28]"]
# Enet 0 / rx_ctl / MIO[27]
set_property iostandard "LVCMOS18" [get_ports "MIO[27]"]
set_property PACKAGE_PIN "D13" [get_ports "MIO[27]"]
set_property slew "fast" [get_ports "MIO[27]"]
set_property drive "8" [get_ports "MIO[27]"]
set_property pullup "TRUE" [get_ports "MIO[27]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[27]"]
# Enet 0 / rxd[3] / MIO[26]
set_property iostandard "LVCMOS18" [get_ports "MIO[26]"]
set_property PACKAGE_PIN "A15" [get_ports "MIO[26]"]
set_property slew "fast" [get_ports "MIO[26]"]
set_property drive "8" [get_ports "MIO[26]"]
set_property pullup "TRUE" [get_ports "MIO[26]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[26]"]
# Enet 0 / rxd[2] / MIO[25]
set_property iostandard "LVCMOS18" [get_ports "MIO[25]"]
set_property PACKAGE_PIN "F15" [get_ports "MIO[25]"]
set_property slew "fast" [get_ports "MIO[25]"]
set_property drive "8" [get_ports "MIO[25]"]
set_property pullup "TRUE" [get_ports "MIO[25]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[25]"]
# Enet 0 / rxd[1] / MIO[24]
set_property iostandard "LVCMOS18" [get_ports "MIO[24]"]
set_property PACKAGE_PIN "A16" [get_ports "MIO[24]"]
set_property slew "fast" [get_ports "MIO[24]"]
set_property drive "8" [get_ports "MIO[24]"]
set_property pullup "TRUE" [get_ports "MIO[24]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[24]"]
# Enet 0 / rxd[0] / MIO[23]
set_property iostandard "LVCMOS18" [get_ports "MIO[23]"]
set_property PACKAGE_PIN "D11" [get_ports "MIO[23]"]
set_property slew "fast" [get_ports "MIO[23]"]
set_property drive "8" [get_ports "MIO[23]"]
set_property pullup "TRUE" [get_ports "MIO[23]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[23]"]
# Enet 0 / rx_clk / MIO[22]
set_property iostandard "LVCMOS18" [get_ports "MIO[22]"]
set_property PACKAGE_PIN "B17" [get_ports "MIO[22]"]
set_property slew "fast" [get_ports "MIO[22]"]
set_property drive "8" [get_ports "MIO[22]"]
set_property pullup "TRUE" [get_ports "MIO[22]"]
set_property PIO_DIRECTION "INPUT" [get_ports "MIO[22]"]
# Enet 0 / tx_ctl / MIO[21]
set_property iostandard "LVCMOS18" [get_ports "MIO[21]"]
set_property PACKAGE_PIN "F14" [get_ports "MIO[21]"]
set_property slew "fast" [get_ports "MIO[21]"]
set_property drive "8" [get_ports "MIO[21]"]
set_property pullup "TRUE" [get_ports "MIO[21]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[21]"]
# Enet 0 / txd[3] / MIO[20]
set_property iostandard "LVCMOS18" [get_ports "MIO[20]"]
set_property PACKAGE_PIN "A17" [get_ports "MIO[20]"]
set_property slew "fast" [get_ports "MIO[20]"]
set_property drive "8" [get_ports "MIO[20]"]
set_property pullup "TRUE" [get_ports "MIO[20]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[20]"]
# Enet 0 / txd[2] / MIO[19]
set_property iostandard "LVCMOS18" [get_ports "MIO[19]"]
set_property PACKAGE_PIN "D10" [get_ports "MIO[19]"]
set_property slew "fast" [get_ports "MIO[19]"]
set_property drive "8" [get_ports "MIO[19]"]
set_property pullup "TRUE" [get_ports "MIO[19]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[19]"]
# Enet 0 / txd[1] / MIO[18]
set_property iostandard "LVCMOS18" [get_ports "MIO[18]"]
set_property PACKAGE_PIN "B18" [get_ports "MIO[18]"]
set_property slew "fast" [get_ports "MIO[18]"]
set_property drive "8" [get_ports "MIO[18]"]
set_property pullup "TRUE" [get_ports "MIO[18]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[18]"]
# Enet 0 / txd[0] / MIO[17]
set_property iostandard "LVCMOS18" [get_ports "MIO[17]"]
set_property PACKAGE_PIN "E14" [get_ports "MIO[17]"]
set_property slew "fast" [get_ports "MIO[17]"]
set_property drive "8" [get_ports "MIO[17]"]
set_property pullup "TRUE" [get_ports "MIO[17]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[17]"]
# Enet 0 / tx_clk / MIO[16]
set_property iostandard "LVCMOS18" [get_ports "MIO[16]"]
set_property PACKAGE_PIN "A19" [get_ports "MIO[16]"]
set_property slew "fast" [get_ports "MIO[16]"]
set_property drive "8" [get_ports "MIO[16]"]
set_property pullup "TRUE" [get_ports "MIO[16]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[16]"]
# Quad SPI Flash / qspi_fbclk / MIO[8]
set_property iostandard "LVCMOS33" [get_ports "MIO[8]"]
set_property PACKAGE_PIN "D5" [get_ports "MIO[8]"]
set_property slew "slow" [get_ports "MIO[8]"]
set_property drive "8" [get_ports "MIO[8]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[8]"]
# Quad SPI Flash / qspi0_sclk / MIO[6]
set_property iostandard "LVCMOS33" [get_ports "MIO[6]"]
set_property PACKAGE_PIN "A5" [get_ports "MIO[6]"]
set_property slew "slow" [get_ports "MIO[6]"]
set_property drive "8" [get_ports "MIO[6]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[6]"]
# Quad SPI Flash / qspi0_io[3]/HOLD_B / MIO[5]
set_property iostandard "LVCMOS33" [get_ports "MIO[5]"]
set_property PACKAGE_PIN "A6" [get_ports "MIO[5]"]
set_property slew "slow" [get_ports "MIO[5]"]
set_property drive "8" [get_ports "MIO[5]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[5]"]
# Quad SPI Flash / qspi0_io[2] / MIO[4]
set_property iostandard "LVCMOS33" [get_ports "MIO[4]"]
set_property PACKAGE_PIN "B7" [get_ports "MIO[4]"]
set_property slew "slow" [get_ports "MIO[4]"]
set_property drive "8" [get_ports "MIO[4]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[4]"]
# Quad SPI Flash / qspi0_io[1] / MIO[3]
set_property iostandard "LVCMOS33" [get_ports "MIO[3]"]
set_property PACKAGE_PIN "D6" [get_ports "MIO[3]"]
set_property slew "slow" [get_ports "MIO[3]"]
set_property drive "8" [get_ports "MIO[3]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[3]"]
# Quad SPI Flash / qspi0_io[0] / MIO[2]
set_property iostandard "LVCMOS33" [get_ports "MIO[2]"]
set_property PACKAGE_PIN "B8" [get_ports "MIO[2]"]
set_property slew "slow" [get_ports "MIO[2]"]
set_property drive "8" [get_ports "MIO[2]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "MIO[2]"]
# Quad SPI Flash / qspi0_ss_b / MIO[1]
set_property iostandard "LVCMOS33" [get_ports "MIO[1]"]
set_property PACKAGE_PIN "A7" [get_ports "MIO[1]"]
set_property slew "slow" [get_ports "MIO[1]"]
set_property drive "8" [get_ports "MIO[1]"]
set_property pullup "TRUE" [get_ports "MIO[1]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "MIO[1]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_VRP"]
set_property PACKAGE_PIN "H5" [get_ports "DDR_VRP"]
set_property slew "FAST" [get_ports "DDR_VRP"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_VRP"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_VRN"]
set_property PACKAGE_PIN "G5" [get_ports "DDR_VRN"]
set_property slew "FAST" [get_ports "DDR_VRN"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_VRN"]
set_property iostandard "SSTL135" [get_ports "DDR_WEB"]
set_property PACKAGE_PIN "M5" [get_ports "DDR_WEB"]
set_property slew "SLOW" [get_ports "DDR_WEB"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_WEB"]
set_property iostandard "SSTL135" [get_ports "DDR_RAS_n"]
set_property PACKAGE_PIN "P4" [get_ports "DDR_RAS_n"]
set_property slew "SLOW" [get_ports "DDR_RAS_n"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_RAS_n"]
set_property iostandard "SSTL135" [get_ports "DDR_ODT"]
set_property PACKAGE_PIN "N5" [get_ports "DDR_ODT"]
set_property slew "SLOW" [get_ports "DDR_ODT"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_ODT"]
set_property iostandard "SSTL135" [get_ports "DDR_DRSTB"]
set_property PACKAGE_PIN "B4" [get_ports "DDR_DRSTB"]
set_property slew "FAST" [get_ports "DDR_DRSTB"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DRSTB"]
set_property iostandard "DIFF_SSTL135_T_DCI" [get_ports "DDR_DQS[3]"]
set_property PACKAGE_PIN "W5" [get_ports "DDR_DQS[3]"]
set_property slew "FAST" [get_ports "DDR_DQS[3]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQS[3]"]
set_property iostandard "DIFF_SSTL135_T_DCI" [get_ports "DDR_DQS[2]"]
set_property PACKAGE_PIN "R2" [get_ports "DDR_DQS[2]"]
set_property slew "FAST" [get_ports "DDR_DQS[2]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQS[2]"]
set_property iostandard "DIFF_SSTL135_T_DCI" [get_ports "DDR_DQS[1]"]
set_property PACKAGE_PIN "G2" [get_ports "DDR_DQS[1]"]
set_property slew "FAST" [get_ports "DDR_DQS[1]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQS[1]"]
set_property iostandard "DIFF_SSTL135_T_DCI" [get_ports "DDR_DQS[0]"]
set_property PACKAGE_PIN "C2" [get_ports "DDR_DQS[0]"]
set_property slew "FAST" [get_ports "DDR_DQS[0]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQS[0]"]
set_property iostandard "DIFF_SSTL135_T_DCI" [get_ports "DDR_DQS_n[3]"]
set_property PACKAGE_PIN "W4" [get_ports "DDR_DQS_n[3]"]
set_property slew "FAST" [get_ports "DDR_DQS_n[3]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQS_n[3]"]
set_property iostandard "DIFF_SSTL135_T_DCI" [get_ports "DDR_DQS_n[2]"]
set_property PACKAGE_PIN "T2" [get_ports "DDR_DQS_n[2]"]
set_property slew "FAST" [get_ports "DDR_DQS_n[2]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQS_n[2]"]
set_property iostandard "DIFF_SSTL135_T_DCI" [get_ports "DDR_DQS_n[1]"]
set_property PACKAGE_PIN "F2" [get_ports "DDR_DQS_n[1]"]
set_property slew "FAST" [get_ports "DDR_DQS_n[1]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQS_n[1]"]
set_property iostandard "DIFF_SSTL135_T_DCI" [get_ports "DDR_DQS_n[0]"]
set_property PACKAGE_PIN "B2" [get_ports "DDR_DQS_n[0]"]
set_property slew "FAST" [get_ports "DDR_DQS_n[0]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQS_n[0]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[9]"]
set_property PACKAGE_PIN "E3" [get_ports "DDR_DQ[9]"]
set_property slew "FAST" [get_ports "DDR_DQ[9]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[9]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[8]"]
set_property PACKAGE_PIN "E2" [get_ports "DDR_DQ[8]"]
set_property slew "FAST" [get_ports "DDR_DQ[8]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[8]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[7]"]
set_property PACKAGE_PIN "E1" [get_ports "DDR_DQ[7]"]
set_property slew "FAST" [get_ports "DDR_DQ[7]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[7]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[6]"]
set_property PACKAGE_PIN "C1" [get_ports "DDR_DQ[6]"]
set_property slew "FAST" [get_ports "DDR_DQ[6]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[6]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[5]"]
set_property PACKAGE_PIN "D1" [get_ports "DDR_DQ[5]"]
set_property slew "FAST" [get_ports "DDR_DQ[5]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[5]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[4]"]
set_property PACKAGE_PIN "D3" [get_ports "DDR_DQ[4]"]
set_property slew "FAST" [get_ports "DDR_DQ[4]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[4]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[3]"]
set_property PACKAGE_PIN "A4" [get_ports "DDR_DQ[3]"]
set_property slew "FAST" [get_ports "DDR_DQ[3]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[3]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[31]"]
set_property PACKAGE_PIN "V3" [get_ports "DDR_DQ[31]"]
set_property slew "FAST" [get_ports "DDR_DQ[31]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[31]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[30]"]
set_property PACKAGE_PIN "V2" [get_ports "DDR_DQ[30]"]
set_property slew "FAST" [get_ports "DDR_DQ[30]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[30]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[2]"]
set_property PACKAGE_PIN "A2" [get_ports "DDR_DQ[2]"]
set_property slew "FAST" [get_ports "DDR_DQ[2]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[2]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[29]"]
set_property PACKAGE_PIN "W3" [get_ports "DDR_DQ[29]"]
set_property slew "FAST" [get_ports "DDR_DQ[29]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[29]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[28]"]
set_property PACKAGE_PIN "Y2" [get_ports "DDR_DQ[28]"]
set_property slew "FAST" [get_ports "DDR_DQ[28]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[28]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[27]"]
set_property PACKAGE_PIN "Y4" [get_ports "DDR_DQ[27]"]
set_property slew "FAST" [get_ports "DDR_DQ[27]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[27]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[26]"]
set_property PACKAGE_PIN "W1" [get_ports "DDR_DQ[26]"]
set_property slew "FAST" [get_ports "DDR_DQ[26]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[26]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[25]"]
set_property PACKAGE_PIN "Y3" [get_ports "DDR_DQ[25]"]
set_property slew "FAST" [get_ports "DDR_DQ[25]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[25]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[24]"]
set_property PACKAGE_PIN "V1" [get_ports "DDR_DQ[24]"]
set_property slew "FAST" [get_ports "DDR_DQ[24]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[24]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[23]"]
set_property PACKAGE_PIN "U3" [get_ports "DDR_DQ[23]"]
set_property slew "FAST" [get_ports "DDR_DQ[23]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[23]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[22]"]
set_property PACKAGE_PIN "U2" [get_ports "DDR_DQ[22]"]
set_property slew "FAST" [get_ports "DDR_DQ[22]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[22]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[21]"]
set_property PACKAGE_PIN "U4" [get_ports "DDR_DQ[21]"]
set_property slew "FAST" [get_ports "DDR_DQ[21]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[21]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[20]"]
set_property PACKAGE_PIN "T4" [get_ports "DDR_DQ[20]"]
set_property slew "FAST" [get_ports "DDR_DQ[20]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[20]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[1]"]
set_property PACKAGE_PIN "B3" [get_ports "DDR_DQ[1]"]
set_property slew "FAST" [get_ports "DDR_DQ[1]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[1]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[19]"]
set_property PACKAGE_PIN "R1" [get_ports "DDR_DQ[19]"]
set_property slew "FAST" [get_ports "DDR_DQ[19]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[19]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[18]"]
set_property PACKAGE_PIN "R3" [get_ports "DDR_DQ[18]"]
set_property slew "FAST" [get_ports "DDR_DQ[18]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[18]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[17]"]
set_property PACKAGE_PIN "P3" [get_ports "DDR_DQ[17]"]
set_property slew "FAST" [get_ports "DDR_DQ[17]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[17]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[16]"]
set_property PACKAGE_PIN "P1" [get_ports "DDR_DQ[16]"]
set_property slew "FAST" [get_ports "DDR_DQ[16]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[16]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[15]"]
set_property PACKAGE_PIN "J1" [get_ports "DDR_DQ[15]"]
set_property slew "FAST" [get_ports "DDR_DQ[15]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[15]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[14]"]
set_property PACKAGE_PIN "H1" [get_ports "DDR_DQ[14]"]
set_property slew "FAST" [get_ports "DDR_DQ[14]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[14]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[13]"]
set_property PACKAGE_PIN "H2" [get_ports "DDR_DQ[13]"]
set_property slew "FAST" [get_ports "DDR_DQ[13]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[13]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[12]"]
set_property PACKAGE_PIN "J3" [get_ports "DDR_DQ[12]"]
set_property slew "FAST" [get_ports "DDR_DQ[12]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[12]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[11]"]
set_property PACKAGE_PIN "H3" [get_ports "DDR_DQ[11]"]
set_property slew "FAST" [get_ports "DDR_DQ[11]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[11]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[10]"]
set_property PACKAGE_PIN "G3" [get_ports "DDR_DQ[10]"]
set_property slew "FAST" [get_ports "DDR_DQ[10]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[10]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DQ[0]"]
set_property PACKAGE_PIN "C3" [get_ports "DDR_DQ[0]"]
set_property slew "FAST" [get_ports "DDR_DQ[0]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DQ[0]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DM[3]"]
set_property PACKAGE_PIN "Y1" [get_ports "DDR_DM[3]"]
set_property slew "FAST" [get_ports "DDR_DM[3]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DM[3]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DM[2]"]
set_property PACKAGE_PIN "T1" [get_ports "DDR_DM[2]"]
set_property slew "FAST" [get_ports "DDR_DM[2]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DM[2]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DM[1]"]
set_property PACKAGE_PIN "F1" [get_ports "DDR_DM[1]"]
set_property slew "FAST" [get_ports "DDR_DM[1]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DM[1]"]
set_property iostandard "SSTL135_T_DCI" [get_ports "DDR_DM[0]"]
set_property PACKAGE_PIN "A1" [get_ports "DDR_DM[0]"]
set_property slew "FAST" [get_ports "DDR_DM[0]"]
set_property PIO_DIRECTION "BIDIR" [get_ports "DDR_DM[0]"]
set_property iostandard "SSTL135" [get_ports "DDR_CS_n"]
set_property PACKAGE_PIN "N1" [get_ports "DDR_CS_n"]
set_property slew "SLOW" [get_ports "DDR_CS_n"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_CS_n"]
set_property iostandard "SSTL135" [get_ports "DDR_CKE"]
set_property PACKAGE_PIN "N3" [get_ports "DDR_CKE"]
set_property slew "SLOW" [get_ports "DDR_CKE"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_CKE"]
set_property iostandard "DIFF_SSTL135" [get_ports "DDR_Clk"]
set_property PACKAGE_PIN "L2" [get_ports "DDR_Clk"]
set_property slew "FAST" [get_ports "DDR_Clk"]
set_property PIO_DIRECTION "INPUT" [get_ports "DDR_Clk"]
set_property iostandard "DIFF_SSTL135" [get_ports "DDR_Clk_n"]
set_property PACKAGE_PIN "M2" [get_ports "DDR_Clk_n"]
set_property slew "FAST" [get_ports "DDR_Clk_n"]
set_property PIO_DIRECTION "INPUT" [get_ports "DDR_Clk_n"]
set_property iostandard "SSTL135" [get_ports "DDR_CAS_n"]
set_property PACKAGE_PIN "P5" [get_ports "DDR_CAS_n"]
set_property slew "SLOW" [get_ports "DDR_CAS_n"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_CAS_n"]
set_property iostandard "SSTL135" [get_ports "DDR_BankAddr[2]"]
set_property PACKAGE_PIN "J5" [get_ports "DDR_BankAddr[2]"]
set_property slew "SLOW" [get_ports "DDR_BankAddr[2]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_BankAddr[2]"]
set_property iostandard "SSTL135" [get_ports "DDR_BankAddr[1]"]
set_property PACKAGE_PIN "R4" [get_ports "DDR_BankAddr[1]"]
set_property slew "SLOW" [get_ports "DDR_BankAddr[1]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_BankAddr[1]"]
set_property iostandard "SSTL135" [get_ports "DDR_BankAddr[0]"]
set_property PACKAGE_PIN "L5" [get_ports "DDR_BankAddr[0]"]
set_property slew "SLOW" [get_ports "DDR_BankAddr[0]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_BankAddr[0]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[9]"]
set_property PACKAGE_PIN "J4" [get_ports "DDR_Addr[9]"]
set_property slew "SLOW" [get_ports "DDR_Addr[9]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[9]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[8]"]
set_property PACKAGE_PIN "K1" [get_ports "DDR_Addr[8]"]
set_property slew "SLOW" [get_ports "DDR_Addr[8]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[8]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[7]"]
set_property PACKAGE_PIN "K4" [get_ports "DDR_Addr[7]"]
set_property slew "SLOW" [get_ports "DDR_Addr[7]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[7]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[6]"]
set_property PACKAGE_PIN "L4" [get_ports "DDR_Addr[6]"]
set_property slew "SLOW" [get_ports "DDR_Addr[6]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[6]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[5]"]
set_property PACKAGE_PIN "L1" [get_ports "DDR_Addr[5]"]
set_property slew "SLOW" [get_ports "DDR_Addr[5]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[5]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[4]"]
set_property PACKAGE_PIN "M4" [get_ports "DDR_Addr[4]"]
set_property slew "SLOW" [get_ports "DDR_Addr[4]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[4]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[3]"]
set_property PACKAGE_PIN "K3" [get_ports "DDR_Addr[3]"]
set_property slew "SLOW" [get_ports "DDR_Addr[3]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[3]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[2]"]
set_property PACKAGE_PIN "M3" [get_ports "DDR_Addr[2]"]
set_property slew "SLOW" [get_ports "DDR_Addr[2]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[2]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[1]"]
set_property PACKAGE_PIN "K2" [get_ports "DDR_Addr[1]"]
set_property slew "SLOW" [get_ports "DDR_Addr[1]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[1]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[14]"]
set_property PACKAGE_PIN "F4" [get_ports "DDR_Addr[14]"]
set_property slew "SLOW" [get_ports "DDR_Addr[14]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[14]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[13]"]
set_property PACKAGE_PIN "D4" [get_ports "DDR_Addr[13]"]
set_property slew "SLOW" [get_ports "DDR_Addr[13]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[13]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[12]"]
set_property PACKAGE_PIN "E4" [get_ports "DDR_Addr[12]"]
set_property slew "SLOW" [get_ports "DDR_Addr[12]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[12]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[11]"]
set_property PACKAGE_PIN "G4" [get_ports "DDR_Addr[11]"]
set_property slew "SLOW" [get_ports "DDR_Addr[11]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[11]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[10]"]
set_property PACKAGE_PIN "F5" [get_ports "DDR_Addr[10]"]
set_property slew "SLOW" [get_ports "DDR_Addr[10]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[10]"]
set_property iostandard "SSTL135" [get_ports "DDR_Addr[0]"]
set_property PACKAGE_PIN "N2" [get_ports "DDR_Addr[0]"]
set_property slew "SLOW" [get_ports "DDR_Addr[0]"]
set_property PIO_DIRECTION "OUTPUT" [get_ports "DDR_Addr[0]"]
set_property iostandard "LVCMOS33" [get_ports "PS_PORB"]
set_property PACKAGE_PIN "C7" [get_ports "PS_PORB"]
set_property slew "fast" [get_ports "PS_PORB"]
set_property iostandard "LVCMOS18" [get_ports "PS_SRSTB"]
set_property PACKAGE_PIN "B10" [get_ports "PS_SRSTB"]
set_property slew "fast" [get_ports "PS_SRSTB"]
set_property iostandard "LVCMOS33" [get_ports "PS_CLK"]
set_property PACKAGE_PIN "E7" [get_ports "PS_CLK"]
set_property slew "fast" [get_ports "PS_CLK"]
While we don’t need to understand all of these, notice that the
processing system references some of its ports (ex. MIO[53]), and
sets properties that only exist if they are mapped to I/O ports
(ex. iostandard). If we don’t connect these to ports, these
directives will fail, and a bitstream won’t be generated.
Because of this, we must connect at least some ports of the system to ports in the top-level module; see the block design in the walkthrough for a minimal example. Note that the constraints apply to the names of the ports for the processing system; accordingly, the names of the top-level ports don’t matter, but must be present.
