Adding Block Designs

Many FPGA tools additionally come with their own libraries of IP that users can include in their designs. In Vivado, these are known as block designs. Block designs include some helpful hardware, such as protocol adapters, as well as other resources like clock generators.

Board Dependency

The resources available will largely vary between boards; accordingly, this section is board dependent. If you have another board, not all of the same IP blocks will be available

Here, we’ll change the frequency of our clock to slow down our counter a bit from the default of 50MHz

Creating a Block Design

Here, we’ll create a new collection of IP to generate a slower clock.

First, start by creating a new block design

Creating a Block Design

On the left, in Flow Navigator, under IP Integrator, select Create Block Design:

Name the design clk_gen
Have the directory be the default Local To Project
Keep the default source set of Design Sources

This will open up the Block Design window, with a few new tabs:

Design: The design hierarchy of our block design
Diagram: A visual block diagram of the design
Address Mapping: The addresses used for address-mapped IP blocks (if we were using any)

Next, let’s add some blocks!

Adding IP

In the Diagram tab, click the + icon or right-click and select Add IP. Search for “Clocking Wizard”, select the result, then click Enter to instantiate it. Repeat this process to instantiate a “ZYNQ7 Processing System” and a “Processor System Reset”. When you instantiate the former, a banner will appear titled “Run Block Automation”; click on this, and run the automation, ensuring that Apply Board Preset is checked. This will create DDR and FIXED_IO connections; this is expected. See Appendix A: Using the Zynq7 Processing System for more details.

In the Diagram tab, you can now see a block diagram of our new IP blocks. Additionally, our hierarchy in the Design tab has been updated.

Let’s make some connections between these IP blocks!

Connecting IP

In the Diagram tab, hover over the FCLK_CLK0 pin of the ZYNQ7 Processing System, then click and drag to start making a connection. Drag this close to the clk_in1 pin of the Clocking Wizard; once you get close, Vivado will recognize that FCLK_CLK0 is a clock output, and clk_in1 is a clock input, and will snap to that connection. Release your mouse to connect the two, then repeat to connect the following pins:

FCLK_RESET0_N of the processing system to reset of the clocking wizard and ext_reset_in of the system reset
M_AXI_GP0_ACLK of the processing system to FCLK_CLK0 of the processing system (just to avoid errors later on)
clk_out1 of the clocking wizard to slowest_sync_clk of the system reset
locked of the clocking wizard to dcm_locked of the system reset

We now need to customize our clocking wizard to get our desired frequency. While we could directly edit the block’s configurations in the Properties window, it’s far more clear to edit them with the Customize Block tool.

Customizing Our Block

In the Diagram tab, click on the Clocking Wizard, then click the wrench icon, or right-click and select “Customize Block”:

Under “Clocking Options”, under “Input Frequency”, switch from “Auto” to “Manual”, then set it to 50MHz (the frequency of FCLK_CLK0 from the processing system)
Under “Output Clocks”:
- Change the output frequency of clk_out1 to 10MHz
- At the bottom, change the reset type to “Active Low”
Click OK

Finally, we need to create the external interface for our design!

Adding Ports

Right-click in the Diagram tab, then click Create Port (note that Create Interface port would allow us to create a particular kind of interface/bundle of signals, if we wanted)

Name the port clk_10mhz, make the direction Output, and make the type Clock. Click OK

This should create a new pin in the block diagram. Connect it to clk_out1 of the Clocking Wizard. Repeat this process to create an output named reset_10mhz connected to mb_reset of the system reset

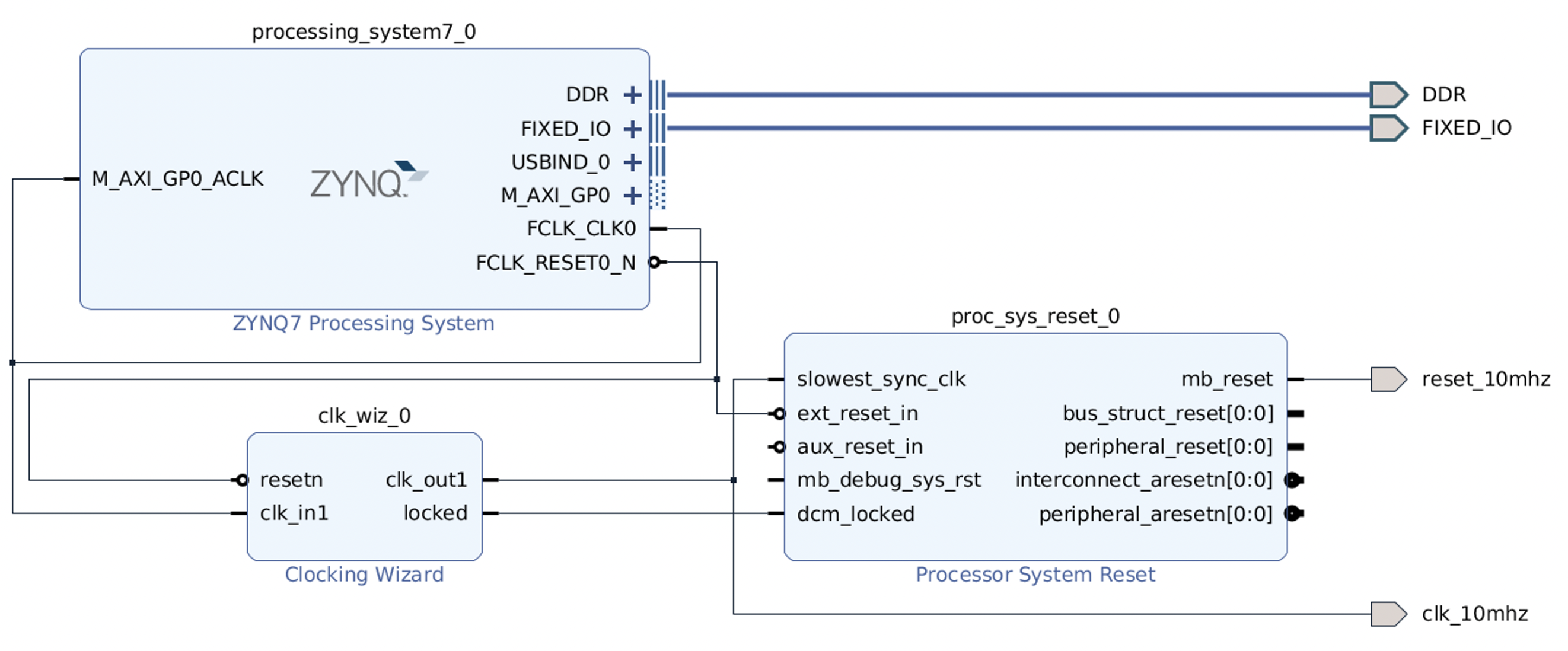

At this point, our block design is finished! It should look like this (you can use the reload icon to make the block design layout look nicer, if you wish):

Vivado does not automatically save block designs for us (notice the star in the upper-left hand corner); do so either with Ctrl+S or File -> Save Block Design

Finishing Up

There are a few last things we want to do to finish up our block design:

Validation: Vivado can help validate our block design, to try and catch any obvious mistakes. Click on Tools -> Validate Design. You may get some warnings about the DDR interface (since it uses unconventional timing), but the design should otherwise be good!
Generation: We additionally need to generate the design files for our block design. On the left-hand side, in Flow Navigator, under IP Integrator, click on Generate Block Design. Click Generate in the pop-up. Vivado will think for a bit, then click OK when it’s done.

The design files have now been generated for our design! If you go to the Sources window, under our CLK_gen block design, you should now see CLK_gen.v, which is the Verilog interface for our design. Examining the CLK_gen module (although it’s a little messy), you should find an output signal named clk_10mhz, and an output signal named reset_10mhz (as well as the DDR and FIXED_IO ports); these are our generated signals!

After these steps, our block design will need to be saved again, then you can click the X in the top-right hand corner to close the block design and return to the normal view.

Creating A Block Design

Either from Tools -> Run Tcl Script or from the command line (shown below), run the make_clk_gen.tcl script

% vivado -mode batch -source ../scripts/block_design/make_clk_gen.tcl

Inspecting this Tcl script, we can see that most of what it does is call another script named CLK_gen.tcl. This script was dumped by Vivado; after creating the block design in the GUI (with the block design open), I used File -> Export -> Export Block Design to export the entire design as a Tcl script. This allows anyone else to perfectly recreate the design by running that script, and can be a great way to share block designs.

The default script does check and fail if you’re using a different version of Vivado (to ensure compatibility), but if you’re using a later version, it’s probably safe to remove this check.

Connecting to Our Design

To use our block design, we can instantiate it like any other RTL module. Let’s create a top-level file to connect our block design and gray code module!

Creating a Top-Level File

Create a new design source file (either with your preferred code editor, or through the Vivado GUI with File -> Add Sources, choosing a design source, and “Create File”) named top.sv with the following content (including connections for the DDR and FIXED_IO ports; see Appendix A: Using the Zynq7 Processing System for more details). Note that you may have to change the capitalization of clk_gen, depending on how Vivado saved the block design name:

// =======================================================================
// top.sv
// =======================================================================
// Our top-level design file

module top (
  input  logic       en,
  output logic [3:0] gray_count,

  // ---------------------------------------------------------------------
  // Processing System Connections
  // ---------------------------------------------------------------------

  inout  logic [53:0] mio,
  inout  logic        ddr_vrp,
  inout  logic        ddr_vrn,
  inout  logic        ddr_web,
  inout  logic        ddr_ras_n,
  inout  logic        ddr_odt,
  inout  logic        ddr_drstb,
  inout  logic  [3:0] ddr_dqs,
  inout  logic  [3:0] ddr_dqs_n,
  inout  logic [31:0] ddr_dq,
  inout  logic  [3:0] ddr_dm,
  inout  logic        ddr_cs_n,
  inout  logic        ddr_cke,
  inout  logic        ddr_clk,
  inout  logic        ddr_clk_n,
  inout  logic        ddr_cas_n,
  inout  logic  [2:0] ddr_bankaddr,
  inout  logic [14:0] ddr_addr,
  inout  logic        ps_porb,
  inout  logic        ps_srstb,
  inout  logic        ps_clk
);

  // ---------------------------------------------------------------------
  // Instantiate our block design
  // ---------------------------------------------------------------------

  logic clk_10mhz, reset_10mhz;

  clk_gen my_clk_gen (
    .clk_10mhz   (clk_10mhz),
    .reset_10mhz (reset_10mhz),

    // - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    // Processing System Connections
    // - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

    .DDR_addr          (ddr_addr),
    .DDR_ba            (ddr_bankaddr),
    .DDR_cas_n         (ddr_cas_n),
    .DDR_ck_n          (ddr_clk_n),
    .DDR_ck_p          (ddr_clk),
    .DDR_cke           (ddr_cke),
    .DDR_cs_n          (ddr_cs_n),
    .DDR_dm            (ddr_dm),
    .DDR_dq            (ddr_dq),
    .DDR_dqs_n         (ddr_dqs_n),
    .DDR_dqs_p         (ddr_dqs),
    .DDR_odt           (ddr_odt),
    .DDR_ras_n         (ddr_ras_n),
    .DDR_reset_n       (ddr_drstb),
    .DDR_we_n          (ddr_web),
    .FIXED_IO_ddr_vrn  (ddr_vrn),
    .FIXED_IO_ddr_vrp  (ddr_vrp),
    .FIXED_IO_mio      (mio),
    .FIXED_IO_ps_clk   (ps_clk),
    .FIXED_IO_ps_porb  (ps_porb),
    .FIXED_IO_ps_srstb (ps_srstb)
  );

  // ---------------------------------------------------------------------
  // Instantiate our gray code counter
  // ---------------------------------------------------------------------

  GrayCode gray_code (
    .clk        (clk_10mhz),
    .rst        (reset_10mhz),
    .en         (en),
    .gray_count (gray_count)
  );

endmodule

If you didn’t create the file through Vivado, follow the steps from Adding Sources to add it as a design source.

Vivado should now reorganize the design hierarchy in the Sources window to show top as the top-level module, additionally shown by bolding it. If you ever wish to manually change/identify the top-level module, you can do so by clicking the gear icon to access the project settings.
